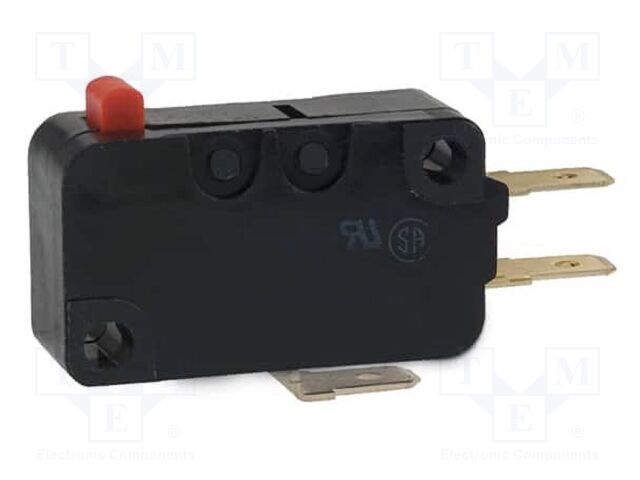

D3V-01-3C22 Omron Electronics Inc-EMC Div

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/125VAC; 0.1A/30VDC; without lever, Leads: connectors, Manufacturer series: D3V, Contact plating: gold-plated, IP rating: IP40, Type of switch: microswitch SNAP ACTION, Switching method: OFF-(ON), Contacts configuration: SPST-NO, Switches features: without lever, Operating temperature: -25...85°C, Leads dimensions: 4.75x0.5mm, Body dimensions: 27.8x10.3x15.9mm, Max. contact resistance:: 100mΩ, DC contacts rating @R: 0.1A / 30V DC, AC contacts rating @R: 0.1A / 125V AC, Operating Force: 0.25N, Stable positions number: 1, Number of positions: 2, Electrical life: 500000 cycles, Mechanical durability: 10000000 cycles, Min. insulation resistance: 0.1GΩ.
