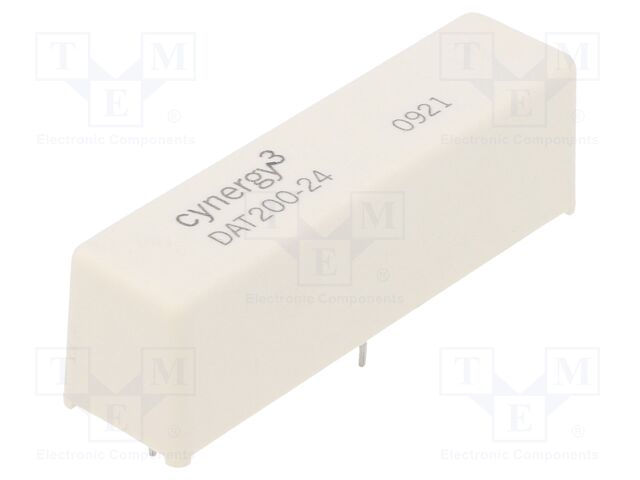

DAT200-24 SENSATA / CYNERGY3
Виробник: SENSATA / CYNERGY3Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 5A; max.2.5VDC; PCB; D
Operating temperature: 20...70°C
Electrical life: 1000000000 cycles
Manufacturer series: D
Type of relay: reed switch
Mounting: PCB
Contact material: tungsten
Release time: 1ms
Operate time: 6ms
Contacts configuration: SPST-NO
Contact resistance: 600Ω
Body dimensions: 60x15.8x18.5mm
Switched voltage: max. 2.5V DC; max. 2.5kV AC
Contact current max.: 5A
Coil voltage min.: 20V DC
Rated coil voltage: 24V DC
Coil resistance: 780Ω
Insulation voltage: 17kV
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис DAT200-24 SENSATA / CYNERGY3
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 5A; max.2.5VDC; PCB; D, Operating temperature: 20...70°C, Electrical life: 1000000000 cycles, Manufacturer series: D, Type of relay: reed switch, Mounting: PCB, Contact material: tungsten, Release time: 1ms, Operate time: 6ms, Contacts configuration: SPST-NO, Contact resistance: 600Ω, Body dimensions: 60x15.8x18.5mm, Switched voltage: max. 2.5V DC; max. 2.5kV AC, Contact current max.: 5A, Coil voltage min.: 20V DC, Rated coil voltage: 24V DC, Coil resistance: 780Ω, Insulation voltage: 17kV, кількість в упаковці: 1 шт.
