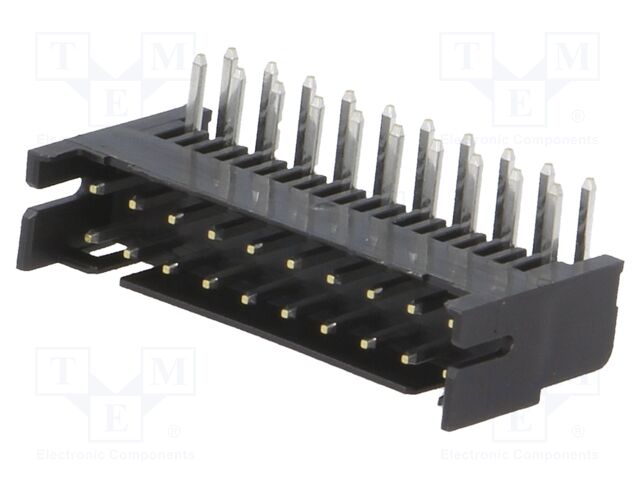

DF11-20DP-2DS(24) Hirose

Description: CONN HEADER R/A 20POS 2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.197" (5.00mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.118" (3.00mm).
