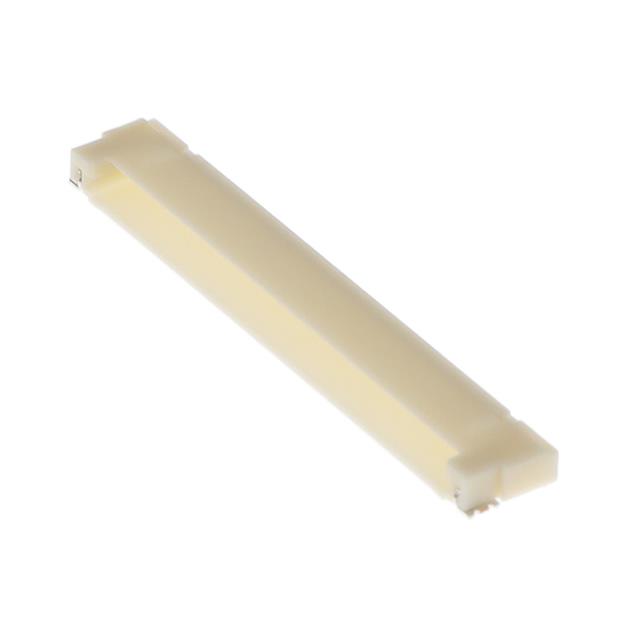

DF14A-25P-1.25H(22) Hirose Electric Co Ltd

Description: CONN HEADER SMD R/A 25POS 1.25MM, Contact Length - Mating: 0.086" (2.20mm), Insulation Material: Polyamide (PA), Nylon, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.098" (2.50mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.049" (1.25mm), Insulation Color: Beige, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -35°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 25, Mounting Type: Surface Mount, Right Angle, Current Rating (Amps): 1A, Voltage Rating: 150VAC, Connector Type: Header, Features: Solder Retention, Packaging: Tape & Reel (TR), Part Status: Active.
