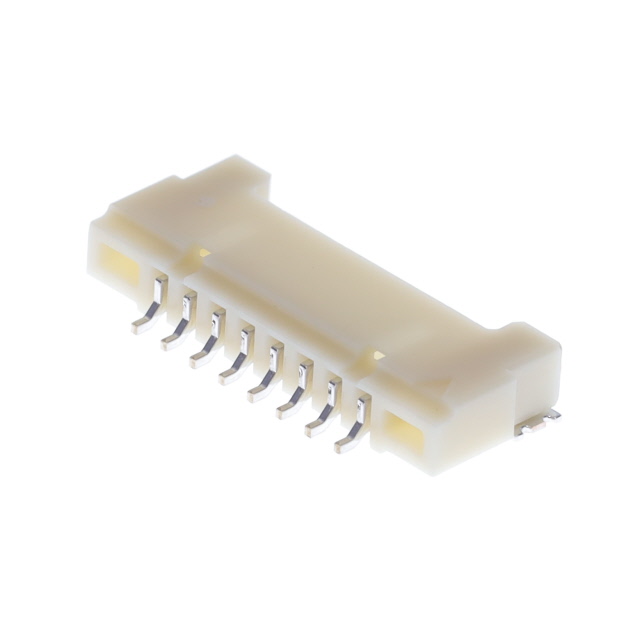

DF14A-8P-1.25H(22) Hirose Electric Co Ltd
Виробник: Hirose Electric Co LtdDescription: CONN HEADER SMD R/A 8POS 1.25MM
Features: Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 150VAC
Current Rating (Amps): 1A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 8
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -35°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Beige
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 39.4µin (1.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.098" (2.50mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Contact Length - Mating: 0.086" (2.20mm)
на замовлення 1000 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1000+ | 58.19 грн |
Відгуки про товар
Написати відгук
Технічний опис DF14A-8P-1.25H(22) Hirose Electric Co Ltd
Description: CONN HEADER SMD R/A 8POS 1.25MM, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 150VAC, Current Rating (Amps): 1A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 8, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -35°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Beige, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.098" (2.50mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Contact Length - Mating: 0.086" (2.20mm).
Інші пропозиції DF14A-8P-1.25H(22) за ціною від 49.33 грн до 107.81 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DF14A-8P-1.25H(22) | Виробник : Hirose Electric Co Ltd |
Description: CONN HEADER SMD R/A 8POS 1.25MM Features: Solder Retention Packaging: Cut Tape (CT) Connector Type: Header Voltage Rating: 150VAC Current Rating (Amps): 1A Mounting Type: Surface Mount, Right Angle Number of Positions: 8 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -35°C ~ 85°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Beige Pitch - Mating: 0.049" (1.25mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 39.4µin (1.00µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.098" (2.50mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon Contact Length - Mating: 0.086" (2.20mm) |
на замовлення 1943 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
DF14A-8P-1.25H(22) | Виробник : Hirose Connector |
Headers & Wire Housings CONN HEADER SMD R/A 8POS 1.25MM |
на замовлення 1036 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
| DF14A-8P-1.25H(22) | Виробник : HIROSE |
Category: Connectors FFC/FPC 0.5mm Description: Connector: wire-board; tinned; SMT; SignalBee; PIN: 8; horizontal Type of connector: wire-board Manufacturer series: SignalBee Number of pins: 8 Spatial orientation: horizontal Electrical mounting: SMT Contact plating: tinned Connector: socket Kind of connector: male Mechanical mounting: on PCBs Contacts pitch: 1.25mm |
товару немає в наявності |
