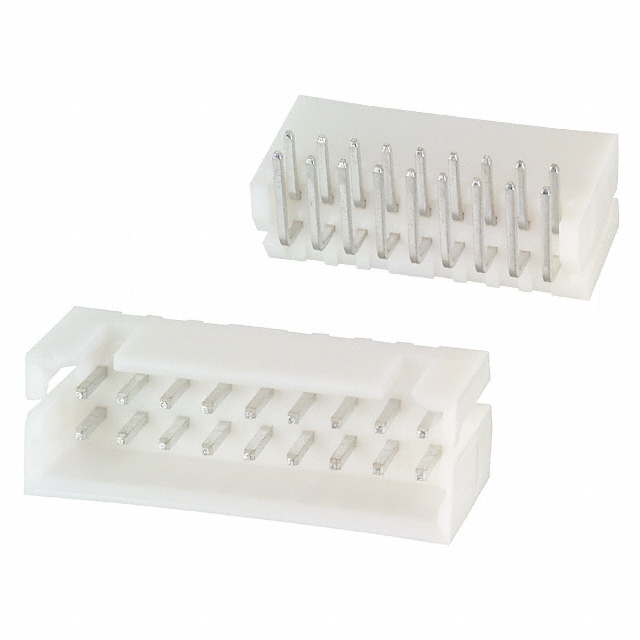

DF1BZ-18DP-2.5DS Hirose Connector

Description: CONN HEADER R/A 18POS 2.5MM, Contact Length - Mating: 0.177" (4.50mm), Row Spacing - Mating: 0.098" (2.50mm), Insulation Material: Polyamide (PA), Nylon, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.339" (8.61mm), Contact Length - Post: 0.130" (3.30mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.098" (2.50mm), Insulation Color: White, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -35°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 18, Mounting Type: Through Hole, Right Angle, Voltage Rating: 150V, Connector Type: Header, Features: Keying Slot, Packaging: Bulk.
