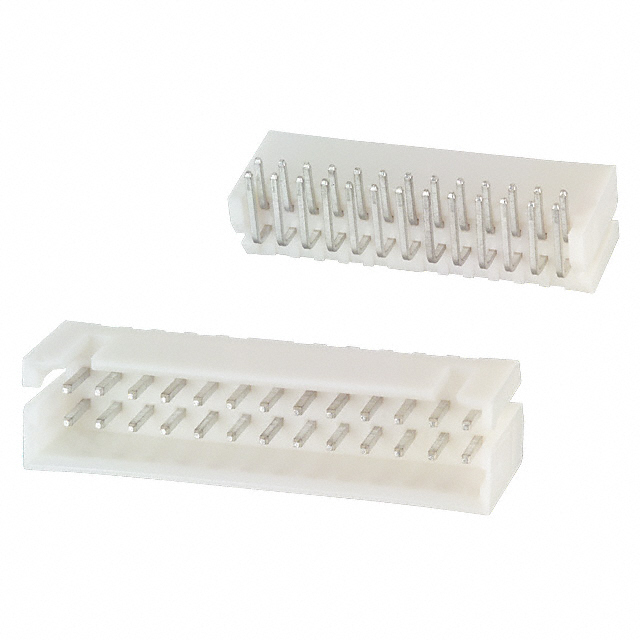

DF1BZ-26DP-2.5DS HIROSE

Description: CONN HEADER R/A 26POS 2.5MM, Features: Keying Slot, Packaging: Bulk, Connector Type: Header, Voltage Rating: 150V, Mounting Type: Through Hole, Right Angle, Number of Positions: 26, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -35°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: White, Pitch - Mating: 0.098" (2.50mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.339" (8.61mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.098" (2.50mm), Contact Length - Mating: 0.177" (4.50mm).
