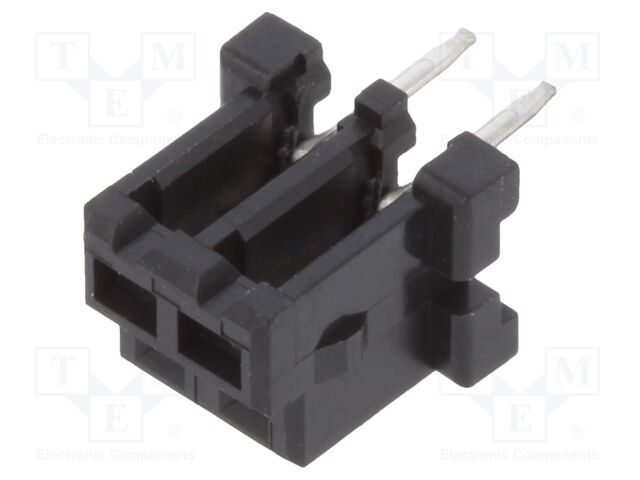

DF3-2S-2DSA(25) HIROSE
Виробник: HIROSE
Category: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; female; PIN: 2; DF3; 3A; 250V; THT
Type of connector: wire-wire/PCB
Electrical mounting: THT
Kind of connector: female
Mechanical mounting: on PCBs
Contact plating: tinned
Connector: socket
Contacts pitch: 2mm
Number of pins: 2
Current rating: 3A
Rated voltage: 0.25kV
Connector pinout layout: 1x2
Manufacturer series: DF3
Spatial orientation: straight
Відгуки про товар
Написати відгук
Технічний опис DF3-2S-2DSA(25) HIROSE
Description: CONN RCPT 2POS 0.079 TIN PCB, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 30VAC, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 2, Style: Board to Board or Cable, Operating Temperature: -30°C ~ 85°C, Contact Type: Female Socket, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Mated Stacking Heights: 6.6mm, 7.5mm, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 78.7µin (2.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.232" (5.90mm), Number of Rows: 1.
Інші пропозиції DF3-2S-2DSA(25) за ціною від 19.90 грн до 49.53 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DF3-2S-2DSA(25) | Hirose Electric Co Ltd |
Description: CONN RCPT 2POS 0.079 TIN PCB Packaging: Tube Connector Type: Receptacle Voltage Rating: 30VAC Current Rating (Amps): 3A Mounting Type: Through Hole Number of Positions: 2 Style: Board to Board or Cable Operating Temperature: -30°C ~ 85°C Contact Type: Female Socket Fastening Type: Friction Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Mated Stacking Heights: 6.6mm, 7.5mm Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 78.7µin (2.00µm) Contact Finish - Post: Tin Part Status: Active Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.232" (5.90mm) Number of Rows: 1 |
на замовлення 12979 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
DF3-2S-2DSA(25) | Hirose Connector |
Headers & Wire Housings 2MM V PCB RECEPTACLE 2POS THRU-HOLE TIN |
на замовлення 1375 шт: термін постачання 21-30 дні (днів) |
|
| DF3-2S-2DSA(25) |
|
Виробник: Hirose Electric Co Ltd
Description: CONN RCPT 2POS 0.079 TIN PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 30VAC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 2
Style: Board to Board or Cable
Operating Temperature: -30°C ~ 85°C
Contact Type: Female Socket
Fastening Type: Friction Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 6.6mm, 7.5mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 78.7µin (2.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.232" (5.90mm)
Number of Rows: 1
Description: CONN RCPT 2POS 0.079 TIN PCB
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 30VAC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 2
Style: Board to Board or Cable
Operating Temperature: -30°C ~ 85°C
Contact Type: Female Socket
Fastening Type: Friction Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 6.6mm, 7.5mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 78.7µin (2.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.232" (5.90mm)
Number of Rows: 1
на замовлення 12979 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 7+ | 47.92 грн |
| 80+ | 33.60 грн |
| 160+ | 31.99 грн |
| 560+ | 27.48 грн |
| 1040+ | 26.31 грн |
| 5040+ | 23.53 грн |
| 10000+ | 22.06 грн |
| DF3-2S-2DSA(25) |
|
Виробник: Hirose Connector
Headers & Wire Housings 2MM V PCB RECEPTACLE 2POS THRU-HOLE TIN
Headers & Wire Housings 2MM V PCB RECEPTACLE 2POS THRU-HOLE TIN
на замовлення 1375 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 7+ | 49.53 грн |
| 25+ | 32.84 грн |
| 80+ | 26.81 грн |
| 560+ | 24.02 грн |
| 1040+ | 22.69 грн |
| 4000+ | 19.90 грн |
