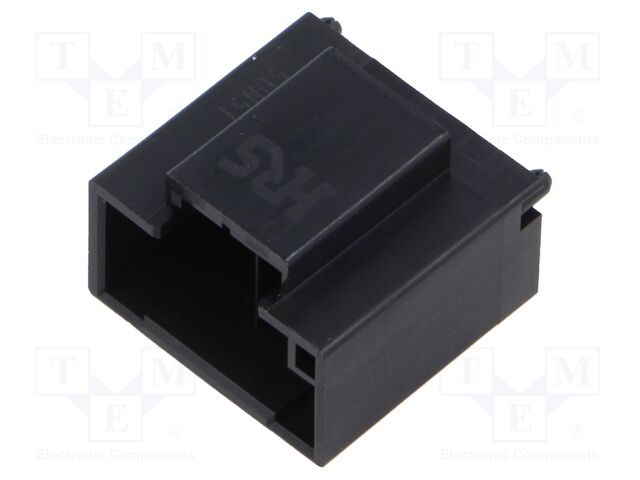

DF60-2P-10.16DSA(27) HIROSE
Виробник: HIROSE
Category: Raster signal connectors 10mm
Description: Connector: wire-board; socket; male; PIN: 2; DF60; angled; THT
Type of connector: wire-board
Connector: socket
Spatial orientation: angled
Mechanical mounting: on PCBs
Electrical mounting: THT
Contacts pitch: 10.16mm
Number of pins: 2
Manufacturer series: DF60
Kind of connector: male
| Кількість | Ціна |
|---|---|
| 3+ | 161.12 грн |
| 10+ | 138.69 грн |
| 25+ | 125.24 грн |
| 30+ | 121.88 грн |
| 50+ | 112.63 грн |
| 96+ | 101.70 грн |
Відгуки про товар
Написати відгук
Технічний опис DF60-2P-10.16DSA(27) HIROSE
Description: CONN HDR 2POS 10.16MM, Features: Board Guide, Packaging: Bulk, Connector Type: Header, Voltage Rating: 1000VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Blade, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.400" (10.16mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Rectangular, Contact Length - Post: 0.150" (3.81mm), Insulation Height: 0.846" (21.50mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polybutylene Terephthalate (PBT).
Інші пропозиції DF60-2P-10.16DSA(27) за ціною від 81.93 грн до 202.03 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "DF60-2P-10.16DSA(27)") |
DF60-2P-10.16DSA(27) | Hirose Electric Co Ltd |
Description: CONN HDR 2POS 10.16MM Features: Board Guide Packaging: Bulk Connector Type: Header Voltage Rating: 1000VAC/DC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole Number of Positions: 2 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 105°C Contact Type: Male Blade Fastening Type: Latch Holder Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.400" (10.16mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 8.00µin (0.203µm) Contact Finish - Post: Gold Part Status: Active Contact Shape: Rectangular Contact Length - Post: 0.150" (3.81mm) Insulation Height: 0.846" (21.50mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polybutylene Terephthalate (PBT) |
на замовлення 14912 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
DF60-2P-10.16DSA(27) | Hirose Connector |
Power to the Board Straight pin header |
на замовлення 1107 шт: термін постачання 21-30 дні (днів) |
|
| DF60-2P-10.16DSA(27) |
|
Виробник: Hirose Electric Co Ltd
Description: CONN HDR 2POS 10.16MM
Features: Board Guide
Packaging: Bulk
Connector Type: Header
Voltage Rating: 1000VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Blade
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.400" (10.16mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Rectangular
Contact Length - Post: 0.150" (3.81mm)
Insulation Height: 0.846" (21.50mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT)
Description: CONN HDR 2POS 10.16MM
Features: Board Guide
Packaging: Bulk
Connector Type: Header
Voltage Rating: 1000VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Blade
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.400" (10.16mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Rectangular
Contact Length - Post: 0.150" (3.81mm)
Insulation Height: 0.846" (21.50mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT)
на замовлення 14912 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 183.82 грн |
| 96+ | 137.85 грн |
| 1056+ | 98.46 грн |
| 5088+ | 81.93 грн |
| DF60-2P-10.16DSA(27) |
|
Виробник: Hirose Connector
Power to the Board Straight pin header
Power to the Board Straight pin header
на замовлення 1107 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 202.03 грн |
| 10+ | 180.68 грн |
| 25+ | 120.80 грн |
| 96+ | 115.22 грн |
| 288+ | 109.63 грн |
| 1056+ | 101.95 грн |
| 2592+ | 97.76 грн |
