Продукція > DEGSON ELECTRONICS > DG300-5.0-02P-12-00A(H)
DG300-5.0-02P-12-00A(H)

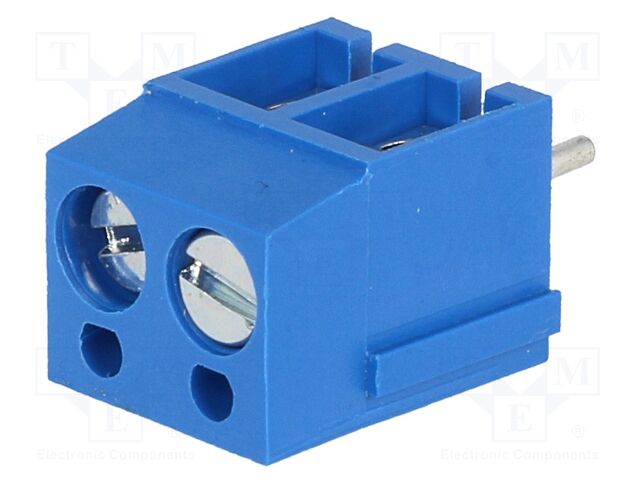

DG300-5.0-02P-12-00A(H) DEGSON ELECTRONICS


pVersion=0046&contRep=ZT&docId=005056AB752F1EE382C5B10759586CAD&compId=DG300-5.0.pdf?ci_sign=49bf9b67e920708f2b373cebada744b2320cd1cf Виробник: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 24A; 250V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Current rating: 24A
Rated voltage: 250V
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: blue
Flammability rating: UL94V-0
Body material: PBT
Wire size: 22AWG...14AWG
Depth: 9mm
Length: 10mm
Connector pinout layout: 1x2
Wire cross-section: 2.5mm2
Contacts pitch: 5mm
Number of ways: 2
Height: 12.6mm
Connectors features: assembling possibility
Conform to the norm: CE; UL; VDE
Operating temperature: -30...120°C
Connector variant: with wire protector
на замовлення 17311 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
25+17.17 грн
50+12.87 грн
99+9.12 грн
272+8.66 грн
Мінімальне замовлення: 25
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис DG300-5.0-02P-12-00A(H) DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 24A; 250V; angled 90°, Type of connector: PCB terminal block, Connector: terminal, Current rating: 24A, Rated voltage: 250V, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: screw terminal; THT, Contact material: brass, Contact plating: tinned, Colour: blue, Flammability rating: UL94V-0, Body material: PBT, Wire size: 22AWG...14AWG, Depth: 9mm, Length: 10mm, Connector pinout layout: 1x2, Wire cross-section: 2.5mm2, Contacts pitch: 5mm, Number of ways: 2, Height: 12.6mm, Connectors features: assembling possibility, Conform to the norm: CE; UL; VDE, Operating temperature: -30...120°C, Connector variant: with wire protector, кількість в упаковці: 1 шт.

Інші пропозиції DG300-5.0-02P-12-00A(H) за ціною від 10.39 грн до 20.60 грн

Фото Назва Виробник Інформація Доступність
Ціна
DG300-5.0-02P-12-00A(H) DG300-5.0-02P-12-00A(H) Виробник : DEGSON ELECTRONICS pVersion=0046&contRep=ZT&docId=005056AB752F1EE382C5B10759586CAD&compId=DG300-5.0.pdf?ci_sign=49bf9b67e920708f2b373cebada744b2320cd1cf Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 24A; 250V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Current rating: 24A
Rated voltage: 250V
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: blue
Flammability rating: UL94V-0
Body material: PBT
Wire size: 22AWG...14AWG
Depth: 9mm
Length: 10mm
Connector pinout layout: 1x2
Wire cross-section: 2.5mm2
Contacts pitch: 5mm
Number of ways: 2
Height: 12.6mm
Connectors features: assembling possibility
Conform to the norm: CE; UL; VDE
Operating temperature: -30...120°C
Connector variant: with wire protector
кількість в упаковці: 1 шт
на замовлення 17311 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
15+20.60 грн
50+16.04 грн
99+10.94 грн
272+10.39 грн
Мінімальне замовлення: 15
В кошику  од. на суму  грн.
DG300-5.0-02P-12-00AH Виробник : Degson Electronics Co., Ltd. Клемник; К-сть виводів = 2; Крок, мм = 5; Тип монт. = на плату; 2.5мм2, 10А, 300В, -30 +120 °C, синього кольору; DIP
на замовлення 800 шт:
термін постачання 3 дні (днів)
В кошику  од. на суму  грн.
