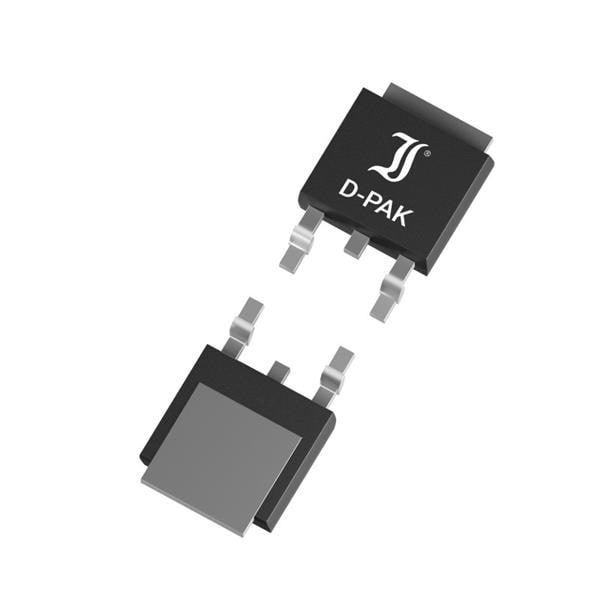

DI040N10D1-AQ Diotec Semiconductor

Description: MOSFET, DPAK, N, 100V, 40A, 17M,, Packaging: Tape & Reel (TR), Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C, Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 40A (Tc), Rds On (Max) @ Id, Vgs: 17mOhm @ 28A, 10V, Power Dissipation (Max): 37.5W (Tc), Vgs(th) (Max) @ Id: 2.5V @ 250µA, Supplier Device Package: TO-252 (DPAK), Grade: Automotive, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 100 V, Gate Charge (Qg) (Max) @ Vgs: 15.5 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 1192 pF @ 50 V, Qualification: AEC-Q101.
