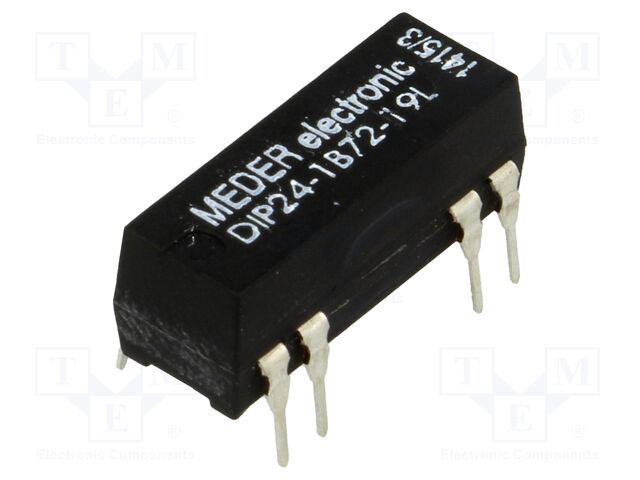

DIP24-1B72-19L MEDER
Виробник: MEDERCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; 290mW
Type of relay: reed switch
Contacts configuration: SPST-NC
Rated coil voltage: 24V DC
Contact current max.: 1A
Manufacturer series: DIP
Switched voltage: max. 200V AC; max. 200V DC
Mounting: PCB
Coil resistance: 2kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 30V DC
Body dimensions: 19.3x7.5x7mm
Coil power consumption: 290mW
Operating temperature: -20...70°C
Terminal pitch: 2.54mm
Contact resistance: 0.15Ω
Soldering temperature: 260°C
Case: DIP14
на замовлення 8 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 421.26 грн |
| 5+ | 381.33 грн |
Відгуки про товар
Написати відгук
Технічний опис DIP24-1B72-19L MEDER
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; 290mW, Type of relay: reed switch, Contacts configuration: SPST-NC, Rated coil voltage: 24V DC, Contact current max.: 1A, Manufacturer series: DIP, Switched voltage: max. 200V AC; max. 200V DC, Mounting: PCB, Coil resistance: 2kΩ, Coil voltage min.: 16.8V DC, Coil voltage max.: 30V DC, Body dimensions: 19.3x7.5x7mm, Coil power consumption: 290mW, Operating temperature: -20...70°C, Terminal pitch: 2.54mm, Contact resistance: 0.15Ω, Soldering temperature: 260°C, Case: DIP14.
Інші пропозиції DIP24-1B72-19L
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
DIP24-1B72-19L | Виробник : StandexMeder Electronics GmbH |
Reed Relay 24VDC 2.2KOhm 1A SPST-NC(19.3x7.62x7.5)mm THT Dry |
товару немає в наявності |
