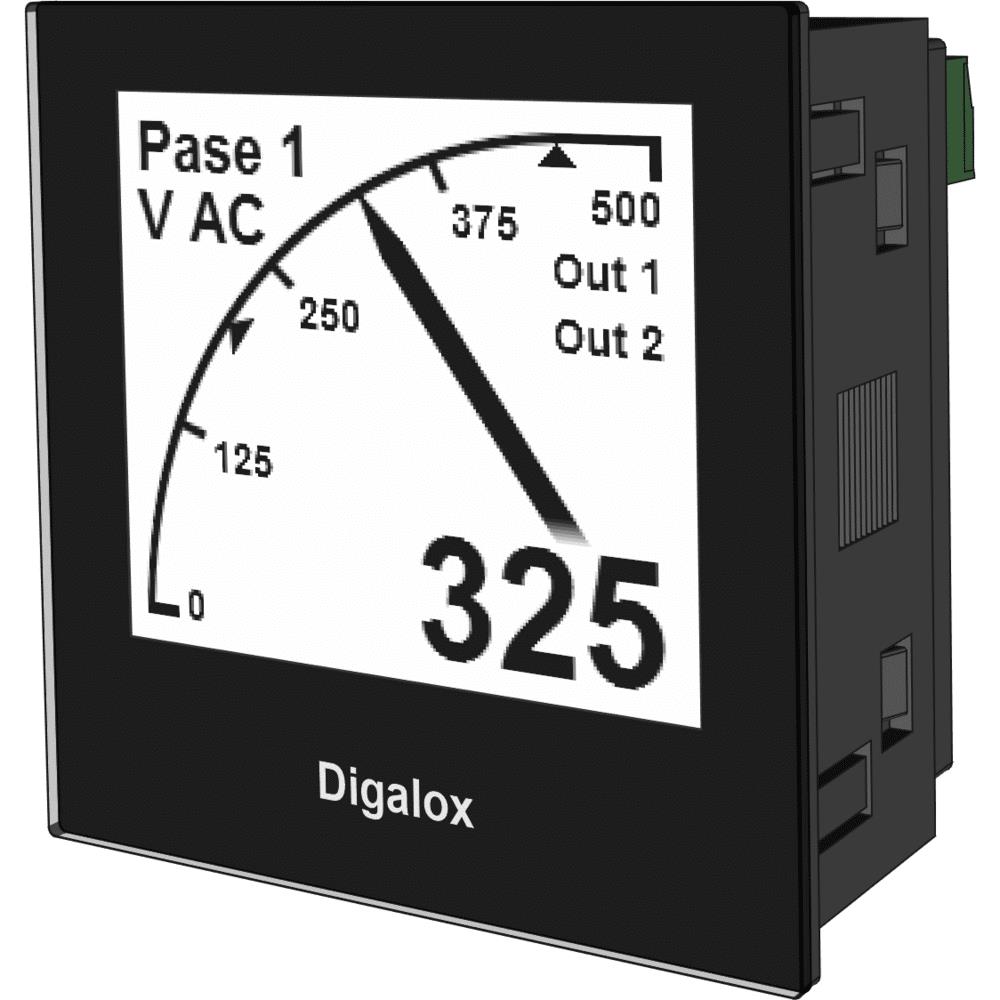

DPM72-AVP TDE Instruments GmbH
Виробник: TDE Instruments GmbH
Description: Panel Multimeter USB
Features: Configuration Utility Software
Packaging: Retail Package
Display Type: LCD - Black Characters, White Backlight
Output Type: Digital (2), Serial
Mounting Type: Panel Mount
Type: Multifunction Meter (Current, Voltage, Frequency)
Termination Style: Plug In Screw Terminals
Voltage - Supply: 12 ~ 24VAC/DC
Measuring Range: -10 ~ 10A, -500 ~ 500V, 500Hz
Ingress Protection: IP65 - Front, IP20 Rear
Panel Cutout Dimensions: Square - 68.00mm x 68.00mm
Display Characters - Height: Programmable
Number of Characters Per Row: Programmable
Measuring Type: Current, Voltage
Відгуки про товар
Написати відгук
Технічний опис DPM72-AVP TDE Instruments GmbH
Category: Power Network Meters and Analyzers, Description: Meter: network parameters; on panel; digital,mounting; LCD, Type of meter: network parameters, Kind of display used: LCD, Power supply: USB, Measuring instrument features: MIN/MAX function; programmable alarm thresholds, Interface: USB, Mounting: on panel, Kind of measurement: indirect with 5A current transformer, IP rating: IP65 from the front, Backlight colour: white, DC voltage measuring range: -500...500V, Operating temperature: 0...50°C, DC current measuring range: -10...10A, AC current measuring range: 0...10A, AC voltage measuring range: 0...500V, Frequency measuring range: 10...1000Hz, Mounting hole diameter: 68x68mm, Dimensions (W x H x D): 72x72mm, Frequency measuring accuracy: ±0.1Hz, DC voltage measuring accuracy: ±1%, AC voltage measuring accuracy: ±1%, AC current measuring accuracy: ±1%, DC current measuring accuracy: ±1%, Supply voltage: 10...30V AC; 10...30V DC, Display resolution: 192x160, Measurement: AC current; AC voltage; DC current; DC voltage; frequency, Kind of meter: digital; mounting.
Інші пропозиції DPM72-AVP за ціною від 6297.89 грн до 7023.96 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
DPM72-AVP | TDE INSTRUMENTS |
Category: Power Network Meters and Analyzers Description: Meter: network parameters; on panel; digital,mounting; LCD Type of meter: network parameters Kind of display used: LCD Power supply: USB Measuring instrument features: MIN/MAX function; programmable alarm thresholds Interface: USB Mounting: on panel Kind of measurement: indirect with 5A current transformer IP rating: IP65 from the front Backlight colour: white DC voltage measuring range: -500...500V Operating temperature: 0...50°C DC current measuring range: -10...10A AC current measuring range: 0...10A AC voltage measuring range: 0...500V Frequency measuring range: 10...1000Hz Mounting hole diameter: 68x68mm Dimensions (W x H x D): 72x72mm Frequency measuring accuracy: ±0.1Hz DC voltage measuring accuracy: ±1% AC voltage measuring accuracy: ±1% AC current measuring accuracy: ±1% DC current measuring accuracy: ±1% Supply voltage: 10...30V AC; 10...30V DC Display resolution: 192x160 Measurement: AC current; AC voltage; DC current; DC voltage; frequency Kind of meter: digital; mounting |
на замовлення 48 шт: термін постачання 14-30 дні (днів) |
|
| DPM72-AVP |
|
Виробник: TDE INSTRUMENTS
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LCD
Type of meter: network parameters
Kind of display used: LCD
Power supply: USB
Measuring instrument features: MIN/MAX function; programmable alarm thresholds
Interface: USB
Mounting: on panel
Kind of measurement: indirect with 5A current transformer
IP rating: IP65 from the front
Backlight colour: white
DC voltage measuring range: -500...500V
Operating temperature: 0...50°C
DC current measuring range: -10...10A
AC current measuring range: 0...10A
AC voltage measuring range: 0...500V
Frequency measuring range: 10...1000Hz
Mounting hole diameter: 68x68mm
Dimensions (W x H x D): 72x72mm
Frequency measuring accuracy: ±0.1Hz
DC voltage measuring accuracy: ±1%
AC voltage measuring accuracy: ±1%
AC current measuring accuracy: ±1%
DC current measuring accuracy: ±1%
Supply voltage: 10...30V AC; 10...30V DC
Display resolution: 192x160
Measurement: AC current; AC voltage; DC current; DC voltage; frequency
Kind of meter: digital; mounting
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LCD
Type of meter: network parameters
Kind of display used: LCD
Power supply: USB
Measuring instrument features: MIN/MAX function; programmable alarm thresholds
Interface: USB
Mounting: on panel
Kind of measurement: indirect with 5A current transformer
IP rating: IP65 from the front
Backlight colour: white
DC voltage measuring range: -500...500V
Operating temperature: 0...50°C
DC current measuring range: -10...10A
AC current measuring range: 0...10A
AC voltage measuring range: 0...500V
Frequency measuring range: 10...1000Hz
Mounting hole diameter: 68x68mm
Dimensions (W x H x D): 72x72mm
Frequency measuring accuracy: ±0.1Hz
DC voltage measuring accuracy: ±1%
AC voltage measuring accuracy: ±1%
AC current measuring accuracy: ±1%
DC current measuring accuracy: ±1%
Supply voltage: 10...30V AC; 10...30V DC
Display resolution: 192x160
Measurement: AC current; AC voltage; DC current; DC voltage; frequency
Kind of meter: digital; mounting
на замовлення 48 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 7023.96 грн |
| 3+ | 6297.89 грн |
