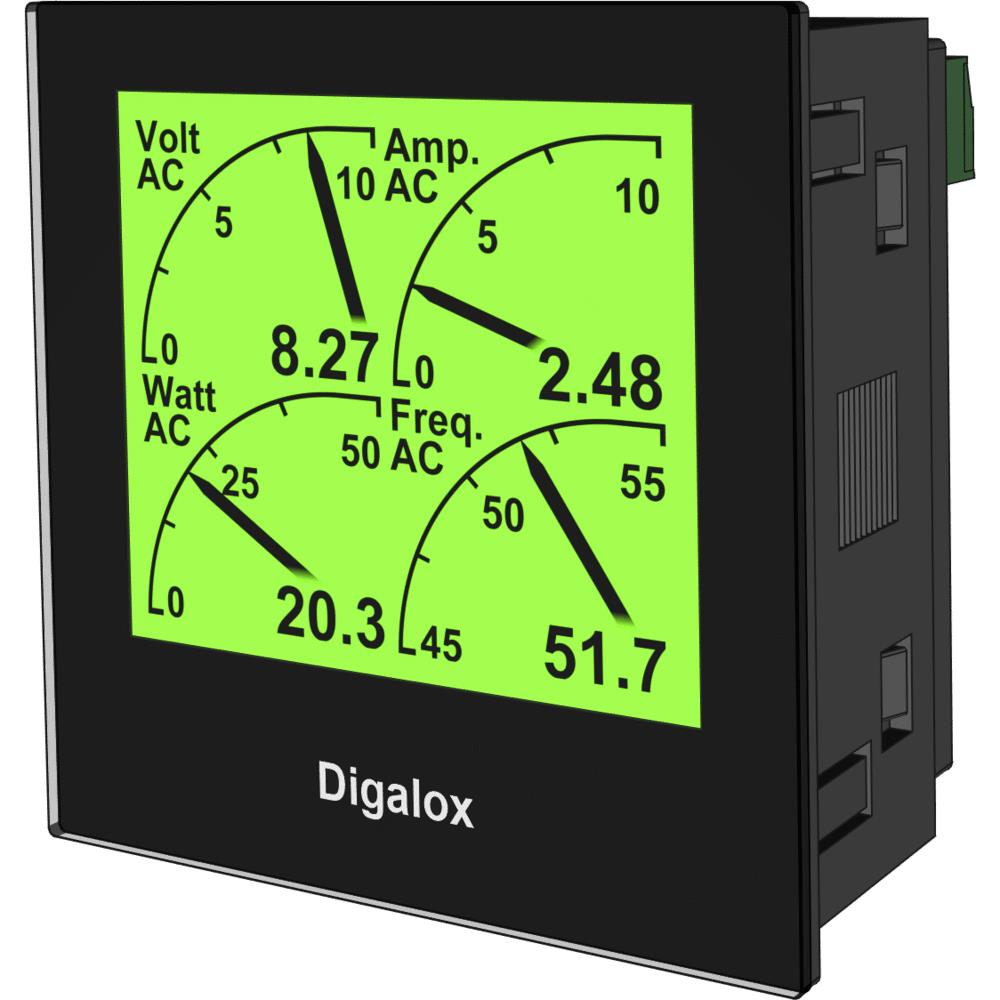

DPM72-MP TDE INSTRUMENTS
Виробник: TDE INSTRUMENTS
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LCD
Type of meter: network parameters
Kind of measurement: indirect with 5A current transformer
Mounting: on panel
Kind of meter: digital; mounting
Kind of display used: LCD
Measurement: AC current; AC voltage; DC current; DC voltage; frequency
AC current measuring range: 0...10A
Operating temperature: 0...50°C
IP rating: IP65 from the front
Supply voltage: 10...24V AC; 10...24V DC
Dimensions (W x H x D): 72x72mm
Supported formats: CSV
DC current measuring range: -10...10A
DC voltage measuring range: -500...500V
AC voltage measuring range: 0...500V
Frequency measuring range: 10...500Hz
Frequency measuring accuracy: ±0.1Hz
DC voltage measuring accuracy: ±1%
DC current measuring accuracy: ±1%
AC voltage measuring accuracy: ±1%
Power supply: USB
Mounting hole diameter: 68x68mm
Interface: USB
Backlight colour: RGB
Display resolution: 192x160
Measuring instrument features: MIN/MAX function; programmable alarm thresholds
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LCD
Type of meter: network parameters
Kind of measurement: indirect with 5A current transformer
Mounting: on panel
Kind of meter: digital; mounting
Kind of display used: LCD
Measurement: AC current; AC voltage; DC current; DC voltage; frequency
AC current measuring range: 0...10A
Operating temperature: 0...50°C
IP rating: IP65 from the front
Supply voltage: 10...24V AC; 10...24V DC
Dimensions (W x H x D): 72x72mm
Supported formats: CSV
DC current measuring range: -10...10A
DC voltage measuring range: -500...500V
AC voltage measuring range: 0...500V
Frequency measuring range: 10...500Hz
Frequency measuring accuracy: ±0.1Hz
DC voltage measuring accuracy: ±1%
DC current measuring accuracy: ±1%
AC voltage measuring accuracy: ±1%
Power supply: USB
Mounting hole diameter: 68x68mm
Interface: USB
Backlight colour: RGB
Display resolution: 192x160
Measuring instrument features: MIN/MAX function; programmable alarm thresholds
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 9728.88 грн |
Відгуки про товар
Написати відгук
Технічний опис DPM72-MP TDE INSTRUMENTS
Category: Power Network Meters and Analyzers, Description: Meter: network parameters; on panel; digital,mounting; LCD, Type of meter: network parameters, Kind of measurement: indirect with 5A current transformer, Mounting: on panel, Kind of meter: digital; mounting, Kind of display used: LCD, Measurement: AC current; AC voltage; DC current; DC voltage; frequency, AC current measuring range: 0...10A, Operating temperature: 0...50°C, IP rating: IP65 from the front, Supply voltage: 10...24V AC; 10...24V DC, Dimensions (W x H x D): 72x72mm, Supported formats: CSV, DC current measuring range: -10...10A, DC voltage measuring range: -500...500V, AC voltage measuring range: 0...500V, Frequency measuring range: 10...500Hz, Frequency measuring accuracy: ±0.1Hz, DC voltage measuring accuracy: ±1%, DC current measuring accuracy: ±1%, AC voltage measuring accuracy: ±1%, Power supply: USB, Mounting hole diameter: 68x68mm, Interface: USB, Backlight colour: RGB, Display resolution: 192x160, Measuring instrument features: MIN/MAX function; programmable alarm thresholds, кількість в упаковці: 1 шт.
Інші пропозиції DPM72-MP за ціною від 10457.94 грн до 11674.66 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
DPM72-MP | Виробник : TDE Instruments GmbH |
Description: Panel Multimeter USB Features: Configuration Utility Software Packaging: Retail Package Display Type: LCD - Black Characters, Tri Color Backlight Output Type: Digital (2), Serial Mounting Type: Panel Mount Type: Multifunction Meter (Current, Voltage, Frequency, Power) Termination Style: Plug In Screw Terminals Voltage - Supply: 12 ~ 24VAC/DC Measuring Range: -10 ~ 10A, -500 ~ 500V, 500Hz Ingress Protection: IP65 - Front, IP20 Rear Panel Cutout Dimensions: Square - 68.00mm x 68.00mm Display Characters - Height: Programmable Number of Characters Per Row: Programmable Measuring Type: Current, Frequency, Voltage, Wattage |
на замовлення 67 шт: термін постачання 21-31 дні (днів) |
|
||||
|
|
DPM72-MP | Виробник : TDE INSTRUMENTS |
Category: Power Network Meters and Analyzers Description: Meter: network parameters; on panel; digital,mounting; LCD Type of meter: network parameters Kind of measurement: indirect with 5A current transformer Mounting: on panel Kind of meter: digital; mounting Kind of display used: LCD Measurement: AC current; AC voltage; DC current; DC voltage; frequency AC current measuring range: 0...10A Operating temperature: 0...50°C IP rating: IP65 from the front Supply voltage: 10...24V AC; 10...24V DC Dimensions (W x H x D): 72x72mm Supported formats: CSV DC current measuring range: -10...10A DC voltage measuring range: -500...500V AC voltage measuring range: 0...500V Frequency measuring range: 10...500Hz Frequency measuring accuracy: ±0.1Hz DC voltage measuring accuracy: ±1% DC current measuring accuracy: ±1% AC voltage measuring accuracy: ±1% Power supply: USB Mounting hole diameter: 68x68mm Interface: USB Backlight colour: RGB Display resolution: 192x160 Measuring instrument features: MIN/MAX function; programmable alarm thresholds кількість в упаковці: 1 шт |
на замовлення 2 шт: термін постачання 14-21 дні (днів) |
|
