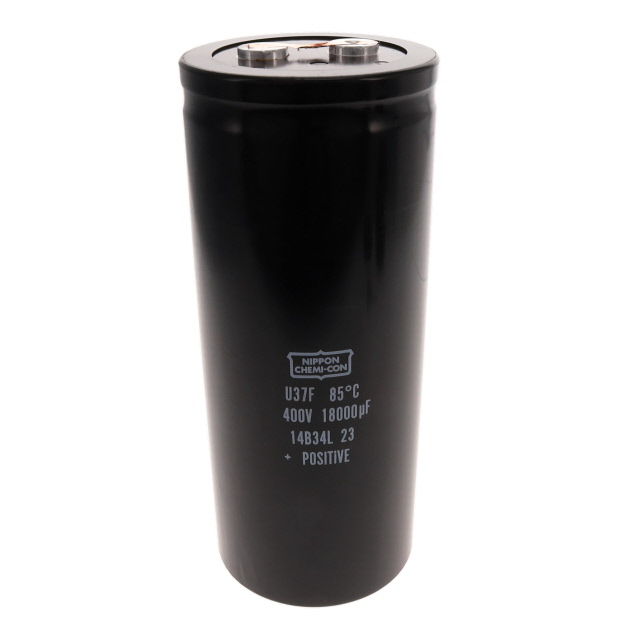

E37F401CPN183MFM9U Chemi-Con
Виробник: Chemi-ConDescription: CAP ALUM 18000UF 20% 400V SCREW
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can - Screw Terminals
Size / Dimension: 3.504" Dia (89.00mm)
Polarization: Polar
Mounting Type: Chassis Mount
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 1.252" (31.80mm)
ESR (Equivalent Series Resistance): 5mOhm @ 120Hz
Lifetime @ Temp.: 5000 Hrs @ 85°C
Height - Seated (Max): 8.661" (220.00mm)
Capacitance: 18000 µF
Voltage - Rated: 400 V
Ripple Current @ Low Frequency: 43.9 A @ 120 Hz
Ripple Current @ High Frequency: 86.715 A @ 10 kHz
на замовлення 13 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 10442.86 грн |
| 10+ | 8040.51 грн |
Відгуки про товар
Написати відгук
Технічний опис E37F401CPN183MFM9U Chemi-Con
Description: CAP ALUM 18000UF 20% 400V SCREW, Tolerance: ±20%, Packaging: Bulk, Package / Case: Radial, Can - Screw Terminals, Size / Dimension: 3.504" Dia (89.00mm), Polarization: Polar, Mounting Type: Chassis Mount, Operating Temperature: -40°C ~ 85°C, Applications: General Purpose, Lead Spacing: 1.252" (31.80mm), ESR (Equivalent Series Resistance): 5mOhm @ 120Hz, Lifetime @ Temp.: 5000 Hrs @ 85°C, Height - Seated (Max): 8.661" (220.00mm), Capacitance: 18000 µF, Voltage - Rated: 400 V, Ripple Current @ Low Frequency: 43.9 A @ 120 Hz, Ripple Current @ High Frequency: 86.715 A @ 10 kHz.
