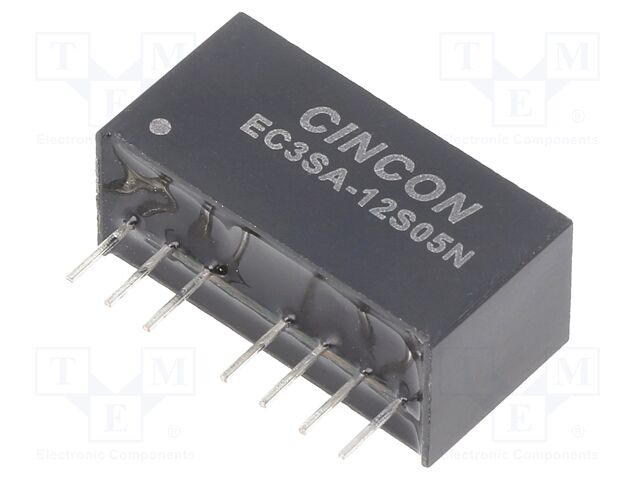

EC3SA-12S05N Cincon Electronics Co. LTD

Description: DC DC CONVERTER 5V 3W, Features: Remote On/Off, SCP, Packaging: Tube, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 18V, Approval Agency: CE, Efficiency: 81%, Current - Output (Max): 600mA, Voltage - Input (Min): 9V, Voltage - Output 1: 5V, Part Status: Active, Power (Watts): 3 W, Number of Outputs: 1, Voltage - Isolation: 1.5 kV, Standard Number: 60950-1.
