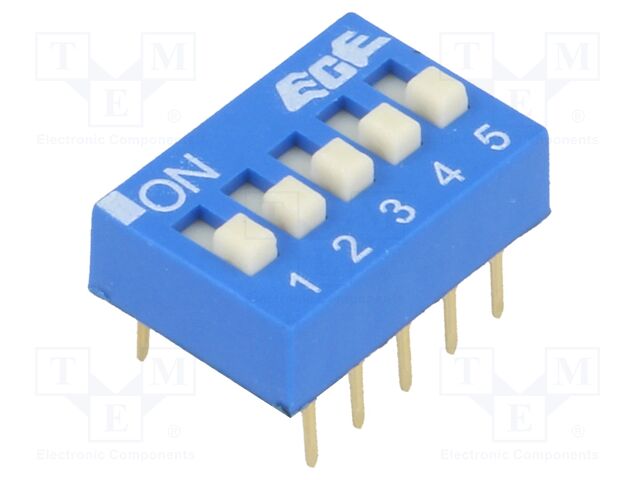

EDG105S Excel Cell Electronic Co., Ltd.
Виробник: Excel Cell Electronic Co., Ltd.Description: DIP SWITCH, 5P
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating (Amps): 25mA
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -25°C ~ 70°C
Termination Style: PC Pin
Actuator Type: Slide (Standard)
Height Above Board: 0.260" (6.60mm)
Actuator Level: Raised
Washable: No
Number of Positions: 5
на замовлення 36 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 68.45 грн |
| 10+ | 56.03 грн |
| 25+ | 52.14 грн |
Відгуки про товар
Написати відгук
Технічний опис EDG105S Excel Cell Electronic Co., Ltd.
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 5; ON-OFF; 0.025A/24VDC; Pos: 2/5, Manufacturer series: EDG, Operating temperature: -40...85°C, Type of switch: DIP-SWITCH, Contacts configuration: SPST, Switches features: raised actuator, Contact plating: gold-plated, Terminals plating: gold-plated, Switching method: ON-OFF, Mounting: THT, Flammability rating: UL94V-0, Terminal pitch: 2.54mm, Body dimensions: 14.2x9.7x4.2mm, Row pitch: 7.62mm, Overall length: 14.2mm, DC contacts rating @R: 25mA / 24V DC, Max. contact resistance:: 50mΩ, Number of positions: 2/5, Poles number: 5, Test voltage: 0.5kV, Mechanical durability: 2000 cycles, Min. insulation resistance: 1GΩ, Stable positions number: 2, кількість в упаковці: 1 шт.
Інші пропозиції EDG105S за ціною від 41.20 грн до 113.94 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDG105S | Виробник : ECE |
Category: Dip-Switches Description: Switch: DIP-SWITCH; Poles number: 5; ON-OFF; 0.025A/24VDC; Pos: 2/5 Manufacturer series: EDG Operating temperature: -40...85°C Type of switch: DIP-SWITCH Contacts configuration: SPST Switches features: raised actuator Contact plating: gold-plated Terminals plating: gold-plated Switching method: ON-OFF Mounting: THT Flammability rating: UL94V-0 Terminal pitch: 2.54mm Body dimensions: 14.2x9.7x4.2mm Row pitch: 7.62mm Overall length: 14.2mm DC contacts rating @R: 25mA / 24V DC Max. contact resistance:: 50mΩ Number of positions: 2/5 Poles number: 5 Test voltage: 0.5kV Mechanical durability: 2000 cycles Min. insulation resistance: 1GΩ Stable positions number: 2 |
на замовлення 1514 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
|
|
EDG105S | Виробник : ECE |
Category: Dip-Switches Description: Switch: DIP-SWITCH; Poles number: 5; ON-OFF; 0.025A/24VDC; Pos: 2/5 Manufacturer series: EDG Operating temperature: -40...85°C Type of switch: DIP-SWITCH Contacts configuration: SPST Switches features: raised actuator Contact plating: gold-plated Terminals plating: gold-plated Switching method: ON-OFF Mounting: THT Flammability rating: UL94V-0 Terminal pitch: 2.54mm Body dimensions: 14.2x9.7x4.2mm Row pitch: 7.62mm Overall length: 14.2mm DC contacts rating @R: 25mA / 24V DC Max. contact resistance:: 50mΩ Number of positions: 2/5 Poles number: 5 Test voltage: 0.5kV Mechanical durability: 2000 cycles Min. insulation resistance: 1GΩ Stable positions number: 2 кількість в упаковці: 1 шт |
на замовлення 1514 шт: термін постачання 7-14 дні (днів) |
|
