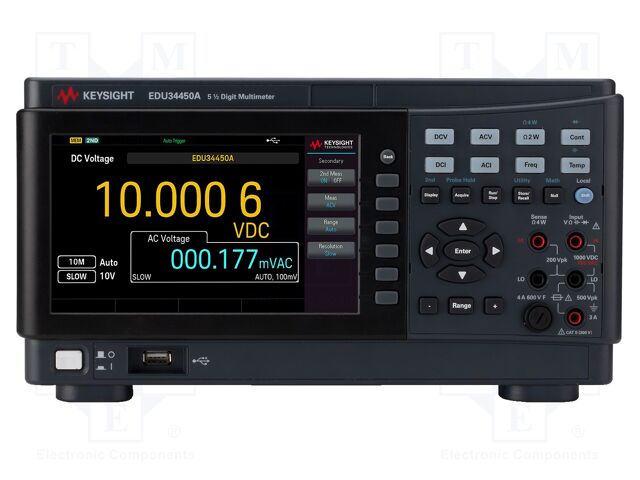

EDU34450A KEYSIGHT

Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD 7"; 5,5 digit; True RMS AC; 20÷300kHz, Kind of display used: LCD 7", Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance (2-wire); resistance (4-wire); temperature, DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV, DC voltage measuring accuracy: ±(0.015% + 0.005% range), AC voltage measuring range: 100mV; 1V; 750V, Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ, Resistance measuring accuracy: ±(0.065%+0.005% range), Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF, Capacitance measuring accuracy: ±(1%+ 0.5% range), Frequency measuring range: 20...300kHz, Frequency measuring accuracy: ±(0.025%+3 digit), Temperature measuring range: -80...150°C, Diode test: 0.5mA @1V, Continuity test: acoustic indication, Interface: LAN; USB, Conform to the norm: CAT I 1000V; CAT II 300V; EN 61010, Standard equipment: mains cable; test leads, Supply voltage: 100...240V AC, Connectors for the country: Europe, Related items: 10833A; 10833B; 10833C; 10833D; 10833F; 10833G; 34138A; 34190A; 34191A; 34194A; 82350B; 82357B; E2308A, Display parameters: 5,5 digit, True effective value measurement: True RMS AC, Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use., DC current measuring range: 10mA; 100mA; 1A; 3A, AC current measuring range: 10mA...3A, DC current measuring accuracy: ±(0.1% + 0.007% range), AC current measuring accuracy: ±(0.5% + 0.1% range), Dimensions: 165x314x119mm, Type of meter: benchtop multimeter, Pollution degree: 2, кількість в упаковці: 1 шт.
