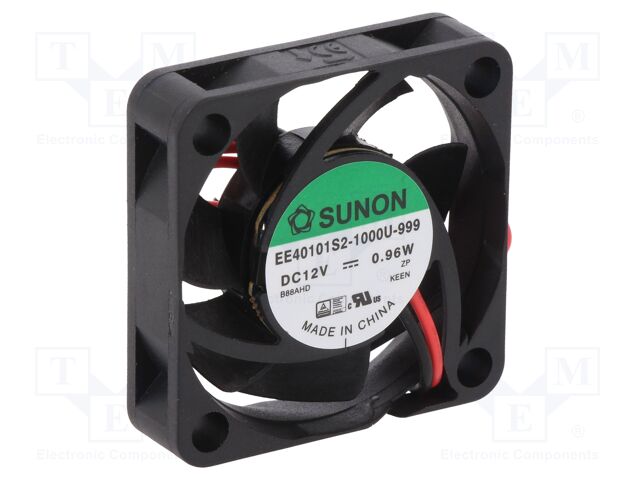

EE40101S2-1000U-999 SUNON

Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 11.99m3/h; 23dBA; slide; 6100rpm
Kind of fan: axial
Kind of Bearing: slide
Fan motor: brushless DC
Type of fan: DC
Related items: SR4-15.5
Leads: leads x2
Enclosure material: thermoplastic
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Fan dimensions: 40x40x10mm
Current rating: 68mA
Lead length: 0.3m
Power consumption: 0.96W
Operating voltage: 6...13.8V DC
Supply voltage: 12V DC
Static pressure: 3.05mm H2O
Fan efficiency: 11.99m3/h
Current and power consumption tolerance: ±15%
Noise level: 23dBA
Wire size: 26AWG
Rotational rate/speed: 6100rpm
Min. insulation resistance: 10MΩ
Insulation class: A
на замовлення 1575 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
3+ | 160.84 грн |
50+ | 112.40 грн |
100+ | 104.54 грн |
200+ | 97.47 грн |
Відгуки про товар
Написати відгук
Технічний опис EE40101S2-1000U-999 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x10mm; 11.99m3/h; 23dBA; slide; 6100rpm, Kind of fan: axial, Kind of Bearing: slide, Fan motor: brushless DC, Type of fan: DC, Related items: SR4-15.5, Leads: leads x2, Enclosure material: thermoplastic, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Fan dimensions: 40x40x10mm, Current rating: 68mA, Lead length: 0.3m, Power consumption: 0.96W, Operating voltage: 6...13.8V DC, Supply voltage: 12V DC, Static pressure: 3.05mm H2O, Fan efficiency: 11.99m3/h, Current and power consumption tolerance: ±15%, Noise level: 23dBA, Wire size: 26AWG, Rotational rate/speed: 6100rpm, Min. insulation resistance: 10MΩ, Insulation class: A, кількість в упаковці: 1 шт.
Інші пропозиції EE40101S2-1000U-999 за ціною від 116.96 грн до 396.10 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
EE40101S2-1000U-999 | Виробник : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 40x40x10mm; 11.99m3/h; 23dBA; slide; 6100rpm Kind of fan: axial Kind of Bearing: slide Fan motor: brushless DC Type of fan: DC Related items: SR4-15.5 Leads: leads x2 Enclosure material: thermoplastic Impeller material: thermoplastic Flammability rating: UL94V-0 Operating temperature: -10...70°C Fan dimensions: 40x40x10mm Current rating: 68mA Lead length: 0.3m Power consumption: 0.96W Operating voltage: 6...13.8V DC Supply voltage: 12V DC Static pressure: 3.05mm H2O Fan efficiency: 11.99m3/h Current and power consumption tolerance: ±15% Noise level: 23dBA Wire size: 26AWG Rotational rate/speed: 6100rpm Min. insulation resistance: 10MΩ Insulation class: A кількість в упаковці: 1 шт |
на замовлення 1575 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||
![]() |
EE40101S2-1000U-999 | Виробник : Sunon Fans |
![]() Packaging: Bulk Features: Auto Restart Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Ball RPM: 6100 RPM Air Flow: 7.1 CFM (0.199m³/min) Width: 10.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 23.0dB(A) Static Pressure: 0.121 in H2O (30.1 Pa) Power (Watts): 820 mW |
на замовлення 1041 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
![]() |
EE40101S2-1000U-999 | Виробник : Sunon |
![]() |
на замовлення 748 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
EE40101S2-1000U-999 | Виробник : Sunon |
![]() |
на замовлення 1577 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||
EE40101S2-1000U-999 | Виробник : Sunon |
![]() |
на замовлення 150 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||
