Продукція > SUNON > EF40101B1-1000U-A99

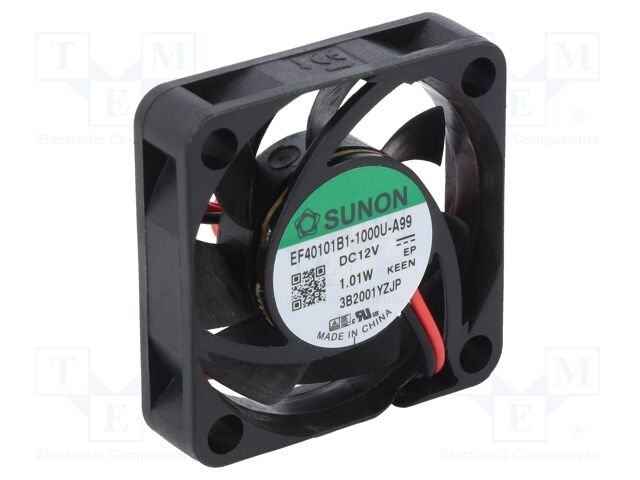

EF40101B1-1000U-A99

EF40101B1-1000U-A99 SUNON


EF40101B1-A99-A.pdf Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.59m3/h; 27.3dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V
Fan dimensions: 40x40x10mm
Power consumption: 1.01W
Current rating: 82mA
Fan efficiency: 13.59m3/h
Noise level: 27.3dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 7000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: Autorestart
Fan motor: brushless DC
Static pressure: 4.82mm H2O
на замовлення 454 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна без ПДВ
1+480.96 грн
10+ 384.77 грн
50+ 356.6 грн
Відгуки про товар
Написати відгук

Технічний опис EF40101B1-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.59m3/h; 27.3dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V, Fan dimensions: 40x40x10mm, Power consumption: 1.01W, Current rating: 82mA, Fan efficiency: 13.59m3/h, Noise level: 27.3dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 7000rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: Autorestart, Fan motor: brushless DC, Static pressure: 4.82mm H2O, кількість в упаковці: 1 шт.

Інші пропозиції EF40101B1-1000U-A99 за ціною від 427.92 грн до 843.42 грн

Фото Назва Виробник Інформація Доступність
Ціна без ПДВ
EF40101B1-1000U-A99 EF40101B1-1000U-A99 Виробник : SUNON EF40101B1-A99-A.pdf Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.59m3/h; 27.3dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V
Fan dimensions: 40x40x10mm
Power consumption: 1.01W
Current rating: 82mA
Fan efficiency: 13.59m3/h
Noise level: 27.3dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 7000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: Autorestart
Fan motor: brushless DC
Static pressure: 4.82mm H2O
кількість в упаковці: 1 шт
на замовлення 454 шт:
термін постачання 7-14 дні (днів)
Кількість Ціна без ПДВ
1+577.16 грн
10+ 479.48 грн
50+ 427.92 грн
EF40101B1-1000U-A99 EF40101B1-1000U-A99 Виробник : Sunon DC Fans Axial Fan, 40x40x10mm, 12VDC, 8CFM, 0.19"H2O, Ball, Wire, Auto Restart
на замовлення 237 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна без ПДВ
1+843.42 грн
25+ 685.73 грн
EF40101B1-1000U-A99 Виробник : Sunon Fans Description: Thermal Products
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 7000 RPM
Air Flow: 8.0 CFM (0.224m³/min)
Width: 10.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 27.3dB(A)
Static Pressure: 0.190 in H2O (47.3 Pa)
Power (Watts): 990 mW
на замовлення 182 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна без ПДВ
1+633.6 грн
10+ 582.45 грн
