Продукція > SUNON > EF40101B2-1000U-A99

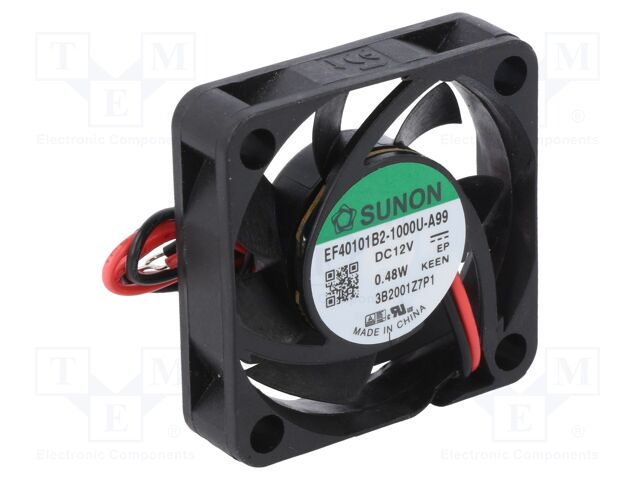

EF40101B2-1000U-A99

EF40101B2-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9EE0B1634F38E0C4&compId=EF40101B2-A99-A.pdf?ci_sign=1a44e2da2122513116ced8482f2128035f484f13 Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 9.35m3/h; 17.7dBA; ball; 5000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 40x40x10mm
Power consumption: 0.45W
Current rating: 37mA
Fan efficiency: 9.35m3/h
Noise level: 17.7dBA
Kind of Bearing: ball
Rotational rate/speed: 5000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 2.53mm H2O
Lead length: 0.3m
Current and power consumption tolerance: ±15%
на замовлення 36 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
1+504.25 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис EF40101B2-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x10mm; 9.35m3/h; 17.7dBA; ball; 5000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 40x40x10mm, Power consumption: 0.45W, Current rating: 37mA, Fan efficiency: 9.35m3/h, Noise level: 17.7dBA, Kind of Bearing: ball, Rotational rate/speed: 5000rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 2.53mm H2O, Lead length: 0.3m, Current and power consumption tolerance: ±15%, кількість в упаковці: 1 шт.

Інші пропозиції EF40101B2-1000U-A99 за ціною від 453.61 грн до 763.88 грн

Фото Назва Виробник Інформація Доступність
Ціна
EF40101B2-1000U-A99 EF40101B2-1000U-A99 Виробник : SUNON pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9EE0B1634F38E0C4&compId=EF40101B2-A99-A.pdf?ci_sign=1a44e2da2122513116ced8482f2128035f484f13 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 9.35m3/h; 17.7dBA; ball; 5000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 40x40x10mm
Power consumption: 0.45W
Current rating: 37mA
Fan efficiency: 9.35m3/h
Noise level: 17.7dBA
Kind of Bearing: ball
Rotational rate/speed: 5000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 2.53mm H2O
Lead length: 0.3m
Current and power consumption tolerance: ±15%
кількість в упаковці: 1 шт
на замовлення 36 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+605.10 грн
50+453.61 грн
В кошику  од. на суму  грн.
EF40101B2-1000U-A99 EF40101B2-1000U-A99 Виробник : Sunon (D04111720G-01)-1.pdf DC Fans Axial Fan, 40x40x10mm, 12VDC, 5.5CFM, 0.1"H2O, Ball, Wire, Auto Restart
на замовлення 362 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+763.88 грн
10+736.90 грн
25+554.70 грн
50+541.46 грн
100+507.62 грн
250+491.44 грн
В кошику  од. на суму  грн.
EF40101B2-1000U-A99 Виробник : Sunon Fans (D04111720G-01)-1.pdf Description: Thermal Products
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 5000 RPM
Air Flow: 5.5 CFM (0.154m³/min)
Width: 10.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 17.7dB(A)
Static Pressure: 0.100 in H2O (24.9 Pa)
Power (Watts): 450 mW
товару немає в наявності
В кошику  од. на суму  грн.
