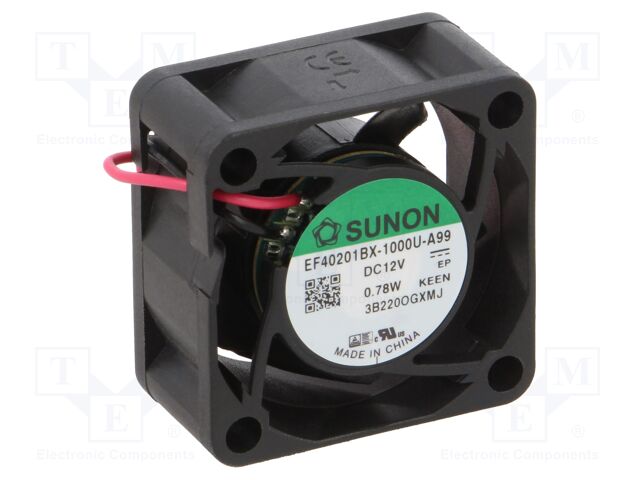

EF40201BX-1000U-A99 Sunon Fans
Виробник: Sunon FansDescription: FAN AXIAL 40X20MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 8200 RPM
Air Flow: 10.8 CFM (0.302m³/min)
Width: 20.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 28.5dB(A)
Static Pressure: 0.320 in H2O (79.7 Pa)
Part Status: Active
Power (Watts): 780 mW
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис EF40201BX-1000U-A99 Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball; 8200rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 40x40x20mm, Power consumption: 0.78W, Current rating: 65mA, Fan efficiency: 18.7m3/h, Noise level: 28.5dBA, Kind of Bearing: ball, Rotational rate/speed: 8200rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.305m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart; protection against reverse connection of power supply, Fan motor: brushless DC, Current and power consumption tolerance: ±15%.
Інші пропозиції EF40201BX-1000U-A99
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
EF40201BX-1000U-A99 | Виробник : Sunon |
DC Fans DC Axial Fan, 40x40x20mm, 12VDC, Ball, Lead Wires, Auto Restart, 2018Q1-MP |
товару немає в наявності |
|
 |
EF40201BX-1000U-A99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball; 8200rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V DC Fan dimensions: 40x40x20mm Power consumption: 0.78W Current rating: 65mA Fan efficiency: 18.7m3/h Noise level: 28.5dBA Kind of Bearing: ball Rotational rate/speed: 8200rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Lead length: 0.305m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart; protection against reverse connection of power supply Fan motor: brushless DC Current and power consumption tolerance: ±15% |
товару немає в наявності |
