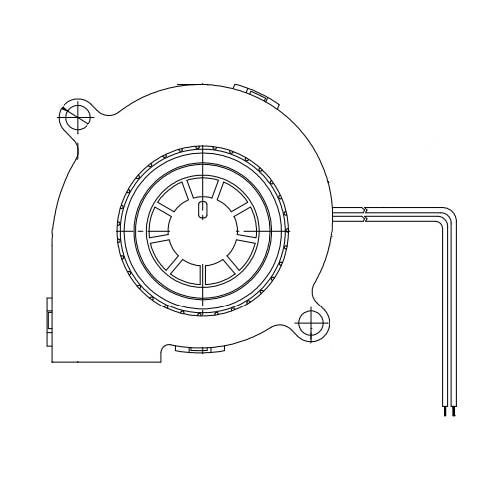

EF50151BX-1B00U-A99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; blower; 12VDC; 51.6x51.7x15mm; 9.17m3/h; 45.8dBA; ball
Type of fan: DC
Kind of fan: blower
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 51.6x51.7x15mm
Power consumption: 1.8W
Current rating: 0.15A
Fan efficiency: 9.17m3/h
Noise level: 45.8dBA
Kind of Bearing: ball
Rotational rate/speed: 6200rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
на замовлення 156 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 928.78 грн |
| 10+ | 819.67 грн |
| 50+ | 798.29 грн |
Відгуки про товар
Написати відгук
Технічний опис EF50151BX-1B00U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 51.6x51.7x15mm; 9.17m3/h; 45.8dBA; ball, Type of fan: DC, Kind of fan: blower, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 51.6x51.7x15mm, Power consumption: 1.8W, Current rating: 0.15A, Fan efficiency: 9.17m3/h, Noise level: 45.8dBA, Kind of Bearing: ball, Rotational rate/speed: 6200rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.305m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, кількість в упаковці: 1 шт.
Інші пропозиції EF50151BX-1B00U-A99 за ціною від 954.15 грн до 1475.06 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EF50151BX-1B00U-A99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; blower; 12VDC; 51.6x51.7x15mm; 9.17m3/h; 45.8dBA; ball Type of fan: DC Kind of fan: blower Supply voltage: 12V DC Operating voltage: 4.5...13.8V DC Fan dimensions: 51.6x51.7x15mm Power consumption: 1.8W Current rating: 0.15A Fan efficiency: 9.17m3/h Noise level: 45.8dBA Kind of Bearing: ball Rotational rate/speed: 6200rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Lead length: 0.305m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC кількість в упаковці: 1 шт |
на замовлення 156 шт: термін постачання 14-21 дні (днів) |
|
||||||||
 |
EF50151BX-1B00U-A99 | Виробник : Sunon Fans |
Description: Thermal Products Packaging: Bulk Part Status: Active Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Rectangular/Rounded - 51.7mm L x 51.6mm H Bearing Type: Ball RPM: 6200 RPM Air Flow: 5.4 CFM (0.151m³/min) Width: 15.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Blower Noise: 45.8dB(A) Static Pressure: 0.970 in H2O (241.6 Pa) Power (Watts): 1.8 W |
на замовлення 3022 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
EF50151BX-1B00U-A99 | Виробник : Sunon |
Blowers & Centrifugal Fans Blower, 50x50x15mm, 12VDC, 5.4CFM, 0.97"H2O, Ball, Wire, Auto Restart |
на замовлення 196 шт: термін постачання 21-30 дні (днів) |
|
