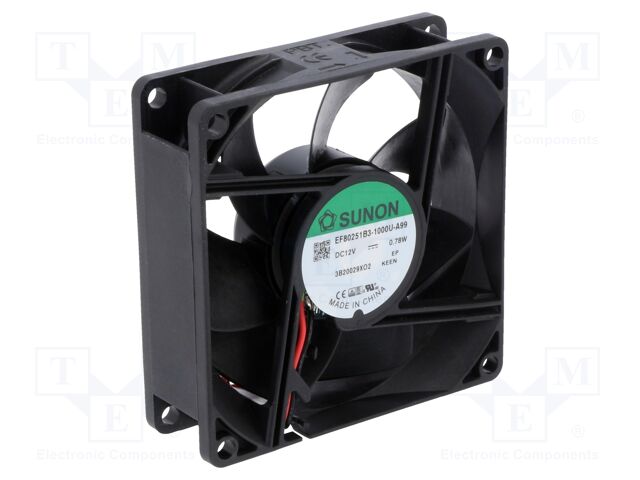

EF80251B3-1000U-A99 SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.05m3/h; 28dBA; ball; 2600rpm
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: ball
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Enclosure material: thermoplastic
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Current rating: 65mA
Fan dimensions: 80x80x25mm
Lead length: 0.315m
Power consumption: 0.78W
Operating voltage: 4.5...13.8V DC
Supply voltage: 12V DC
Current and power consumption tolerance: ±15%
Noise level: 28dBA
Fan efficiency: 56.05m3/h
Rotational rate/speed: 2600rpm
Insulation class: A
Min. insulation resistance: 10MΩ
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 403.71 грн |
| 10+ | 331.27 грн |
| 25+ | 285.98 грн |
| 50+ | 249.92 грн |
| 250+ | 246.56 грн |
Відгуки про товар
Написати відгук
Технічний опис EF80251B3-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.05m3/h; 28dBA; ball; 2600rpm, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: ball, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Enclosure material: thermoplastic, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Current rating: 65mA, Fan dimensions: 80x80x25mm, Lead length: 0.315m, Power consumption: 0.78W, Operating voltage: 4.5...13.8V DC, Supply voltage: 12V DC, Current and power consumption tolerance: ±15%, Noise level: 28dBA, Fan efficiency: 56.05m3/h, Rotational rate/speed: 2600rpm, Insulation class: A, Min. insulation resistance: 10MΩ.
Інші пропозиції EF80251B3-1000U-A99
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
EF80251B3-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 80X25MM 12VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Ball RPM: 2600 RPM Air Flow: 33.0 CFM (0.924m³/min) Width: 25.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CCC, CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 28.0dB(A) Static Pressure: 0.110 in H2O (27.4 Pa) Part Status: Active Power (Watts): 780 mW |
товару немає в наявності |
Мінімальне замовлення: 50 шт В кошику од. на суму грн. |
 |
EF80251B3-1000U-A99 | Sunon |
Blowers & Centrifugal Fans DC Axial Fan, 80x80x25mm, 12VDC, Ball, Lead Wires, Auto Restart, 2017Q3-MP |
товару немає в наявності |
В кошику од. на суму грн. |
| EF80251B3-1000U-A99 |
|
Виробник: Sunon Fans
Description: FAN AXIAL 80X25MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 2600 RPM
Air Flow: 33.0 CFM (0.924m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CCC, CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 28.0dB(A)
Static Pressure: 0.110 in H2O (27.4 Pa)
Part Status: Active
Power (Watts): 780 mW
Description: FAN AXIAL 80X25MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 2600 RPM
Air Flow: 33.0 CFM (0.924m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CCC, CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 28.0dB(A)
Static Pressure: 0.110 in H2O (27.4 Pa)
Part Status: Active
Power (Watts): 780 mW
