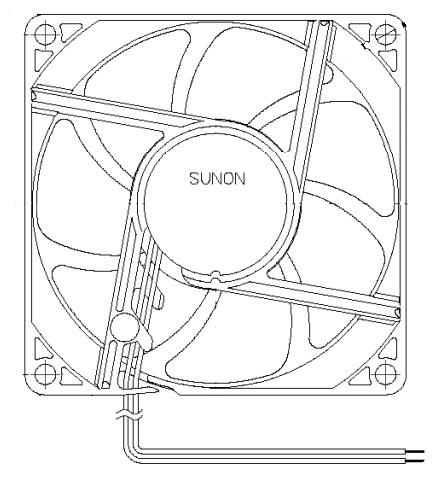

EF80251S3-1000U-A99 SUNON

Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.06m3/h; 28dBA; slide; 2600rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 80x80x25mm
Power consumption: 0.84W
Current rating: 70mA
Fan efficiency: 56.06m3/h
Noise level: 28dBA
Kind of Bearing: slide
Rotational rate/speed: 2600rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.315m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
на замовлення 168 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
2+ | 352.40 грн |
10+ | 284.31 грн |
50+ | 255.19 грн |
Відгуки про товар
Написати відгук
Технічний опис EF80251S3-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.06m3/h; 28dBA; slide; 2600rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 80x80x25mm, Power consumption: 0.84W, Current rating: 70mA, Fan efficiency: 56.06m3/h, Noise level: 28dBA, Kind of Bearing: slide, Rotational rate/speed: 2600rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, кількість в упаковці: 1 шт.
Інші пропозиції EF80251S3-1000U-A99 за ціною від 253.81 грн до 550.92 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
EF80251S3-1000U-A99 | Виробник : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.06m3/h; 28dBA; slide; 2600rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V DC Fan dimensions: 80x80x25mm Power consumption: 0.84W Current rating: 70mA Fan efficiency: 56.06m3/h Noise level: 28dBA Kind of Bearing: slide Rotational rate/speed: 2600rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Lead length: 0.315m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC кількість в упаковці: 1 шт |
на замовлення 168 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
EF80251S3-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 168 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
EF80251S3-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 180 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
EF80251S3-1000U-A99 | Виробник : Sunon Fans |
![]() Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Sleeve RPM: 2600 RPM Air Flow: 33.0 CFM (0.924m³/min) Width: 25.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 28.0dB(A) Static Pressure: 0.110 in H2O (27.4 Pa) Power (Watts): 840 mW |
товару немає в наявності |
||||||||||||
![]() |
EF80251S3-1000U-A99 | Виробник : Sunon |
![]() |
товару немає в наявності |
