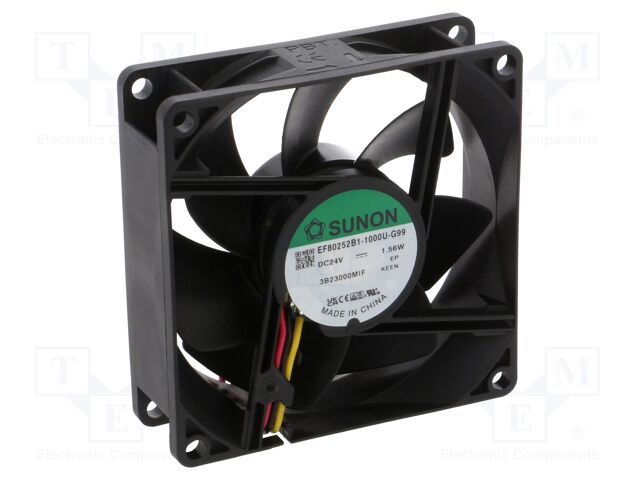

EF80252B1-1000U-G99 SUNON
Виробник: SUNONCategory: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 69.5m3/h; 33dBA; ball; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V DC
Fan dimensions: 80x80x25mm
Power consumption: 1.56W
Current rating: 65mA
Noise level: 33dBA
Kind of Bearing: ball
Signal output: F type
Rotational rate/speed: 3200rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.315m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Fan efficiency: 69.5m3/h
на замовлення 1391 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 501.16 грн |
| 10+ | 429.57 грн |
| 50+ | 393.77 грн |
| 200+ | 357.97 грн |
Відгуки про товар
Написати відгук
Технічний опис EF80252B1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x25mm; 69.5m3/h; 33dBA; ball; Out: F type, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 8...27.6V DC, Fan dimensions: 80x80x25mm, Power consumption: 1.56W, Current rating: 65mA, Noise level: 33dBA, Kind of Bearing: ball, Signal output: F type, Rotational rate/speed: 3200rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x3, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Fan efficiency: 69.5m3/h, кількість в упаковці: 1 шт.
Інші пропозиції EF80252B1-1000U-G99 за ціною від 429.57 грн до 905.27 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EF80252B1-1000U-G99 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x25mm; 69.5m3/h; 33dBA; ball; Out: F type Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 8...27.6V DC Fan dimensions: 80x80x25mm Power consumption: 1.56W Current rating: 65mA Noise level: 33dBA Kind of Bearing: ball Signal output: F type Rotational rate/speed: 3200rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x3 Lead length: 0.315m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Fan efficiency: 69.5m3/h кількість в упаковці: 1 шт |
на замовлення 1391 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| EF80252B1-1000U-G99 | Виробник : Sunon |
EF80252B1-1000U-G99 |
на замовлення 579 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| EF80252B1-1000U-G99 | Виробник : Sunon Fans |
Description: FAN AXIAL 80X25MM 24VDC WIRE Features: Auto Restart, Speed Sensor (Tach) Packaging: Bulk Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Ball RPM: 3200 RPM Air Flow: 41.0 CFM (1.15m³/min) Width: 25.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 3 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 33.0dB(A) Static Pressure: 0.180 in H2O (45.0 Pa) Power (Watts): 1.56 W |
товару немає в наявності |
||||||||||||
| EF80252B1-1000U-G99 | Виробник : Sunon |
DC Fans DC Axial Fan, 80x80x25mm, 24VDC, Ball, 3x Lead Wires, Auto Restart, Tach |
товару немає в наявності |
