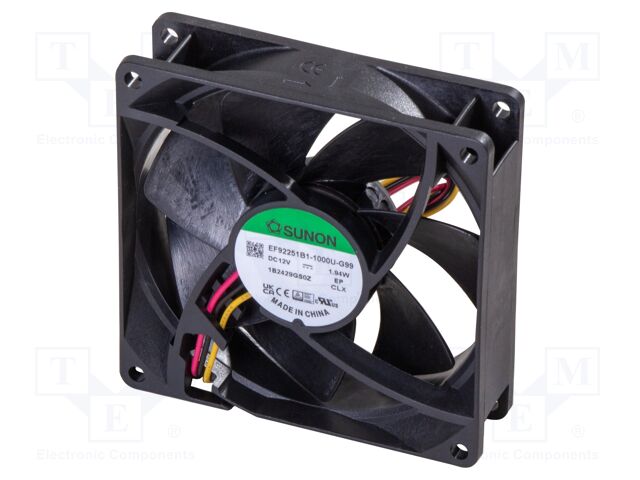

EF92251B1-1000U-G99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 69.66m3/h; 40.7dBA; ball; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Fan dimensions: 92x92x25mm
Power consumption: 1.73W
Current rating: 144mA
Fan efficiency: 69.66m3/h
Noise level: 40.7dBA
Kind of Bearing: ball
Rotational rate/speed: 3000 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 3.56mm H2O
Fan motor: brushless DC
Insulation class: A
Wire size: 24AWG
Additional functions: autorestart
Signal output: F type
Operating voltage: 4.5...13.8V DC
на замовлення 2973 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 415.64 грн |
| 10+ | 349.79 грн |
| 56+ | 301.06 грн |
| 112+ | 281.40 грн |
Відгуки про товар
Написати відгук
Технічний опис EF92251B1-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x25mm; 69.66m3/h; 40.7dBA; ball; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Fan dimensions: 92x92x25mm, Power consumption: 1.73W, Current rating: 144mA, Fan efficiency: 69.66m3/h, Noise level: 40.7dBA, Kind of Bearing: ball, Rotational rate/speed: 3000 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 3.56mm H2O, Fan motor: brushless DC, Insulation class: A, Wire size: 24AWG, Additional functions: autorestart, Signal output: F type, Operating voltage: 4.5...13.8V DC, кількість в упаковці: 1 шт.
Інші пропозиції EF92251B1-1000U-G99 за ціною від 337.69 грн до 498.76 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EF92251B1-1000U-G99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x25mm; 69.66m3/h; 40.7dBA; ball; 24AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Fan dimensions: 92x92x25mm Power consumption: 1.73W Current rating: 144mA Fan efficiency: 69.66m3/h Noise level: 40.7dBA Kind of Bearing: ball Rotational rate/speed: 3000 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x3 Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 3.56mm H2O Fan motor: brushless DC Insulation class: A Wire size: 24AWG Additional functions: autorestart Signal output: F type Operating voltage: 4.5...13.8V DC кількість в упаковці: 1 шт |
на замовлення 2973 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| EF92251B1-1000U-G99 | Виробник : Sunon |
EF92251B1-1000U-G99 |
на замовлення 3540 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| EF92251B1-1000U-G99 | Виробник : Sunon Fans |
Description: 12VDC FAN 92X25MM ALARM Features: Auto Restart, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Ball RPM: 3000 RPM Air Flow: 51.3 CFM (1.44m³/min) Width: 25.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 34.0dB(A) Static Pressure: 0.170 in H2O (42.3 Pa) Power (Watts): 1.5 W |
товару немає в наявності |
||||||||||||
| EF92251B1-1000U-G99 | Виробник : Sunon |
DC Fans DC Axial Fan, 92x92x25mm, 12VDC, Ball, 3x Lead Wires, Auto Restart, Tach |
товару немає в наявності |
