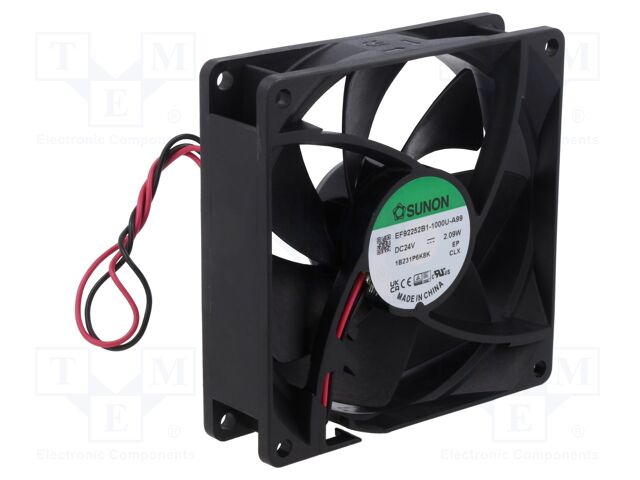

EF92252B1-1000U-A99 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; 3000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V DC
Fan dimensions: 92x92x25mm
Power consumption: 2.09W
Current rating: 63mA
Fan efficiency: 82m3/h
Noise level: 34dBA
Kind of Bearing: ball
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 400.10 грн |
| 10+ | 328.75 грн |
| 28+ | 304.43 грн |
Відгуки про товар
Написати відгук
Технічний опис EF92252B1-1000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; 3000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 8...27.6V DC, Fan dimensions: 92x92x25mm, Power consumption: 2.09W, Current rating: 63mA, Fan efficiency: 82m3/h, Noise level: 34dBA, Kind of Bearing: ball, Rotational rate/speed: 3000rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.3m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC.
Інші пропозиції EF92252B1-1000U-A99 за ціною від 492.58 грн до 879.44 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EF92252B1-1000U-A99 | Sunon |
Blowers & Centrifugal Fans DC Axial Fan, 92x92x25mm, 24VDC, Ball, Lead Wires, Auto Restart, 2017Q4-MP |
на замовлення 30 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
EF92252B1-1000U-A99 | Sunon Fans |
Description: FAN 92X25MM 24VDC Features: Auto Restart Packaging: Bulk Voltage - Rated: 24VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Ball RPM: 3000 RPM Air Flow: 51.5 CFM (1.44m³/min) Width: 25.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, cURus, TUV Fan Type: Tubeaxial Noise: 34.0dB(A) Static Pressure: 0.170 in H2O (42.3 Pa) Power (Watts): 1.52 W |
на замовлення 259 шт: термін постачання 21-31 дні (днів) |
|
| EF92252B1-1000U-A99 |
|
Виробник: Sunon
Blowers & Centrifugal Fans DC Axial Fan, 92x92x25mm, 24VDC, Ball, Lead Wires, Auto Restart, 2017Q4-MP
Blowers & Centrifugal Fans DC Axial Fan, 92x92x25mm, 24VDC, Ball, Lead Wires, Auto Restart, 2017Q4-MP
на замовлення 30 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 856.74 грн |
| 10+ | 727.52 грн |
| 25+ | 576.89 грн |
| 56+ | 530.90 грн |
| 112+ | 493.28 грн |
| 280+ | 492.58 грн |
| EF92252B1-1000U-A99 |
|
Виробник: Sunon Fans
Description: FAN 92X25MM 24VDC
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 3000 RPM
Air Flow: 51.5 CFM (1.44m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.170 in H2O (42.3 Pa)
Power (Watts): 1.52 W
Description: FAN 92X25MM 24VDC
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 3000 RPM
Air Flow: 51.5 CFM (1.44m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.170 in H2O (42.3 Pa)
Power (Watts): 1.52 W
на замовлення 259 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 879.44 грн |
| 10+ | 685.57 грн |
| 25+ | 625.14 грн |
| 56+ | 539.66 грн |
| 112+ | 501.79 грн |
