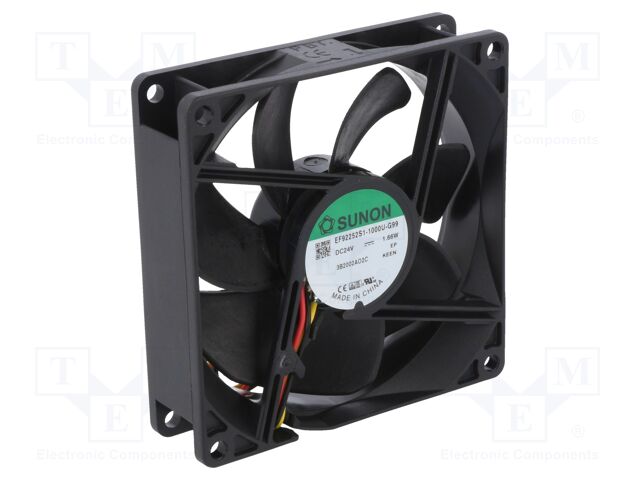

EF92252S1-1000U-G99 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.5m3/h; 34dBA; slide; 3.81mmH2O
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 1.66W
Current rating: 60mA
Fan efficiency: 87.5m3/h
Noise level: 34dBA
Kind of Bearing: slide
Rotational rate/speed: 3000 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 3.81mm H2O
Operating voltage: 8...27.6V DC
Signal output: F type
Fan motor: brushless DC
Insulation class: A
Additional functions: autorestart
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 308.88 грн |
| 10+ | 264.17 грн |
| 56+ | 203.79 грн |
Відгуки про товар
Написати відгук
Технічний опис EF92252S1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.5m3/h; 34dBA; slide; 3.81mmH2O, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 92x92x25mm, Power consumption: 1.66W, Current rating: 60mA, Fan efficiency: 87.5m3/h, Noise level: 34dBA, Kind of Bearing: slide, Rotational rate/speed: 3000 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 3.81mm H2O, Operating voltage: 8...27.6V DC, Signal output: F type, Fan motor: brushless DC, Insulation class: A, Additional functions: autorestart.
Інші пропозиції EF92252S1-1000U-G99
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
| EF92252S1-1000U-G99 | Sunon Fans |
Description: 24VDC FAN 92X25MM ALARM Features: Auto Restart, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 24VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Sleeve RPM: 3000 RPM Air Flow: 51.3 CFM (1.44m³/min) Width: 25.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 34.0dB(A) Static Pressure: 0.150 in H2O (37.4 Pa) Power (Watts): 1.44 W |
товару немає в наявності |
Мінімальне замовлення: 56 шт В кошику од. на суму грн. | |
| EF92252S1-1000U-G99 | Sunon |
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, Sleeve, 3x Lead Wires, Auto Restart, Tach |
товару немає в наявності |
В кошику од. на суму грн. |
| EF92252S1-1000U-G99 |
|
Виробник: Sunon Fans
Description: 24VDC FAN 92X25MM ALARM
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Sleeve
RPM: 3000 RPM
Air Flow: 51.3 CFM (1.44m³/min)
Width: 25.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.150 in H2O (37.4 Pa)
Power (Watts): 1.44 W
Description: 24VDC FAN 92X25MM ALARM
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Sleeve
RPM: 3000 RPM
Air Flow: 51.3 CFM (1.44m³/min)
Width: 25.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.150 in H2O (37.4 Pa)
Power (Watts): 1.44 W
товару немає в наявності
Мінімальне замовлення: 56 шт
В кошику
од. на суму грн.
| EF92252S1-1000U-G99 |
|
Виробник: Sunon
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, Sleeve, 3x Lead Wires, Auto Restart, Tach
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, Sleeve, 3x Lead Wires, Auto Restart, Tach
товару немає в наявності
В кошику
од. на суму грн.
