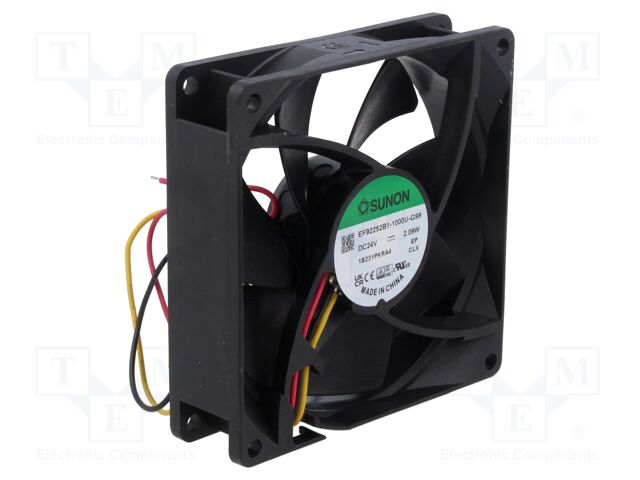

EF9225B1-1000U-G99 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 2.09W
Current rating: 63mA
Fan efficiency: 82m3/h
Noise level: 34dBA
Kind of Bearing: ball
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Lead length: 0.3m
Additional functions: autorestart
Signal output: F type
Insulation class: A
Operating voltage: 8...27.6V DC
Fan motor: brushless DC
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 2.09W
Current rating: 63mA
Fan efficiency: 82m3/h
Noise level: 34dBA
Kind of Bearing: ball
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Lead length: 0.3m
Additional functions: autorestart
Signal output: F type
Insulation class: A
Operating voltage: 8...27.6V DC
Fan motor: brushless DC
на замовлення 189 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 667.75 грн |
| 10+ | 561.00 грн |
| 56+ | 501.95 грн |
Відгуки про товар
Написати відгук
Технічний опис EF9225B1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; Out: F type, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 92x92x25mm, Power consumption: 2.09W, Current rating: 63mA, Fan efficiency: 82m3/h, Noise level: 34dBA, Kind of Bearing: ball, Rotational rate/speed: 3000rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Lead length: 0.3m, Additional functions: autorestart, Signal output: F type, Insulation class: A, Operating voltage: 8...27.6V DC, Fan motor: brushless DC, кількість в упаковці: 1 шт.
Інші пропозиції EF9225B1-1000U-G99 за ціною від 602.34 грн до 888.09 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EF9225B1-1000U-G99 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; Out: F type Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Fan dimensions: 92x92x25mm Power consumption: 2.09W Current rating: 63mA Fan efficiency: 82m3/h Noise level: 34dBA Kind of Bearing: ball Rotational rate/speed: 3000rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x3 Operating temperature: -10...70°C Flammability rating: UL94V-0 Lead length: 0.3m Additional functions: autorestart Signal output: F type Insulation class: A Operating voltage: 8...27.6V DC Fan motor: brushless DC кількість в упаковці: 1 шт |
на замовлення 189 шт: термін постачання 14-21 дні (днів) |
|
||||||||
| EF9225B1-1000U-G99 | Виробник : Sunon | EF9225B1-1000U-G99 |
на замовлення 199 шт: термін постачання 21-31 дні (днів) |
|
