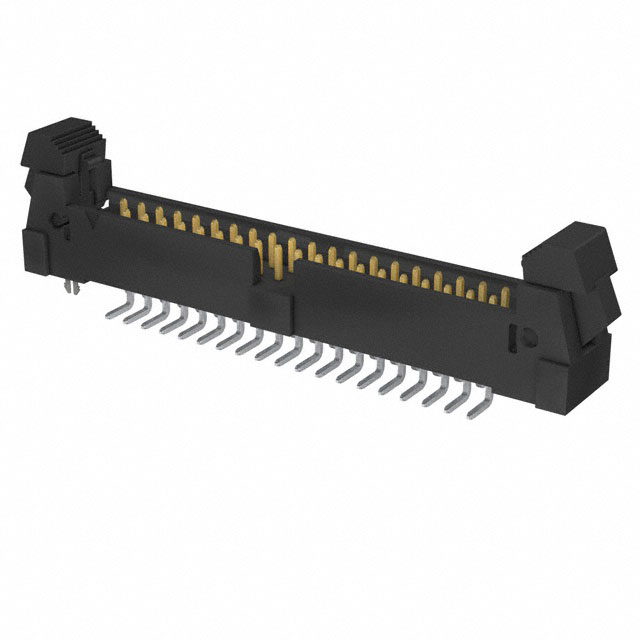

EHT-120-01-L-D Samtec Inc.
Виробник: Samtec Inc.
Description: CONN EJECTOR HDR 40POS 2MM
Features: Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.390" (9.91mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 610.78 грн |
| 10+ | 543.97 грн |
| 25+ | 513.95 грн |
| 50+ | 439.48 грн |
| 100+ | 412.78 грн |
Відгуки про товар
Написати відгук
Технічний опис EHT-120-01-L-D Samtec Inc.
Description: CONN EJECTOR HDR 40POS 2MM, Features: Keying Slot, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 40, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.114" (2.90mm), Insulation Height: 0.390" (9.91mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції EHT-120-01-L-D за ціною від 469.81 грн до 836.87 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EHT-120-01-L-D | Samtec |
Headers & Wire Housings 2.00MM SHROUDED IDC EJECT HDR |
на замовлення 465 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. | ||||||
| EHT-120-01-L-D | SAMTEC |
Category: Raster signal connectors 2,00mm Description: Connector: wire-board; male; PIN: 40; 3A; straight; soldering; 2mm Operating temperature: -55...125°C Contact plating: gold-plated Spatial orientation: straight Contact material: phosphor bronze Flammability rating: UL94V-0 Connector variant: shrouded Contacts pitch: 2mm Number of pins: 40 Current rating: 3A Marker colour: black Electrical mounting: soldering Type of connector: wire-board Locking system: for latch Kind of connector: male |
на замовлення 847 шт: термін постачання 14-30 дні (днів) |
|
| EHT-120-01-L-D |
|
Виробник: Samtec
Headers & Wire Housings 2.00MM SHROUDED IDC EJECT HDR
Headers & Wire Housings 2.00MM SHROUDED IDC EJECT HDR
на замовлення 465 шт:
термін постачання 21-30 дні (днів)
| EHT-120-01-L-D |
|
Виробник: SAMTEC
Category: Raster signal connectors 2,00mm
Description: Connector: wire-board; male; PIN: 40; 3A; straight; soldering; 2mm
Operating temperature: -55...125°C
Contact plating: gold-plated
Spatial orientation: straight
Contact material: phosphor bronze
Flammability rating: UL94V-0
Connector variant: shrouded
Contacts pitch: 2mm
Number of pins: 40
Current rating: 3A
Marker colour: black
Electrical mounting: soldering
Type of connector: wire-board
Locking system: for latch
Kind of connector: male
Category: Raster signal connectors 2,00mm
Description: Connector: wire-board; male; PIN: 40; 3A; straight; soldering; 2mm
Operating temperature: -55...125°C
Contact plating: gold-plated
Spatial orientation: straight
Contact material: phosphor bronze
Flammability rating: UL94V-0
Connector variant: shrouded
Contacts pitch: 2mm
Number of pins: 40
Current rating: 3A
Marker colour: black
Electrical mounting: soldering
Type of connector: wire-board
Locking system: for latch
Kind of connector: male
на замовлення 847 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 9+ | 836.87 грн |
| 100+ | 518.07 грн |
| 500+ | 469.81 грн |
