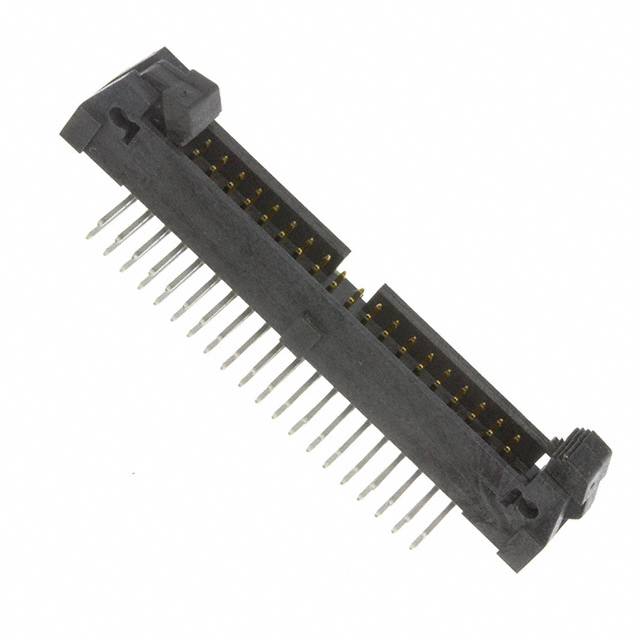

EHT-120-01-S-D-RA Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER R/A 40POS 2MM
Contact Length - Mating: 0.120" (3.05mm)
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.300" (7.62mm)
Contact Length - Post: 0.120" (3.05mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Latch Lock/Eject Hooks
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 40
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 3A
Connector Type: Header
Features: Keying Slot
Packaging: Tube
| Кількість | Ціна |
|---|---|
| 1+ | 518.47 грн |
| 10+ | 424.00 грн |
| 100+ | 360.40 грн |
| 500+ | 305.17 грн |
Відгуки про товар
Написати відгук
Технічний опис EHT-120-01-S-D-RA Samtec Inc.
Description: CONN HEADER R/A 40POS 2MM, Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.079" (2.00mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.300" (7.62mm), Contact Length - Post: 0.120" (3.05mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 40, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 3A, Connector Type: Header, Features: Keying Slot, Packaging: Tube.
Інші пропозиції EHT-120-01-S-D-RA за ціною від 723.41 грн до 1090.01 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EHT-120-01-S-D-RA | Samtec |
Headers & Wire Housings 2.00MM SHROUDED IDC EJECT HDR |
на замовлення 34 шт: термін постачання 21-30 дні (днів) |
|
| EHT-120-01-S-D-RA |
|
Виробник: Samtec
Headers & Wire Housings 2.00MM SHROUDED IDC EJECT HDR
Headers & Wire Housings 2.00MM SHROUDED IDC EJECT HDR
на замовлення 34 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1090.01 грн |
| 10+ | 1017.42 грн |
| 30+ | 851.20 грн |
| 50+ | 784.16 грн |
| 100+ | 723.41 грн |
