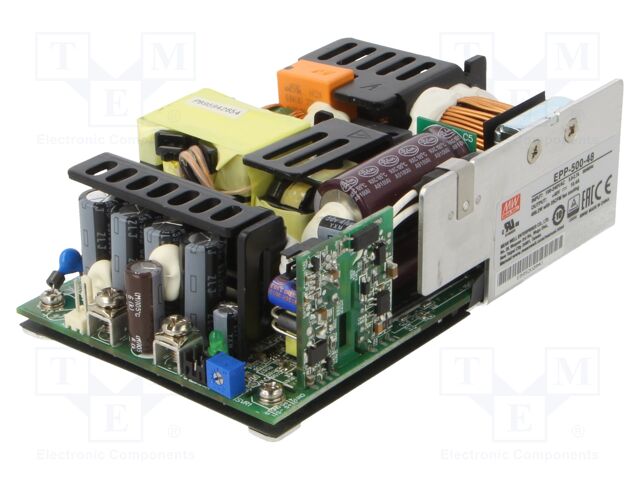

EPP-500-48 MEAN WELL
Виробник: MEAN WELL
Category: Open Frame Power Supplies
Description: Power supply: switching; open; 500W; 127÷370VDC; 90÷264VAC; OUT: 1
Manufacturer series: EPP-500
Electrical connection: plug with 3,96mm pitch; screw terminals
Type of power supply: switching
Operating temperature: -30...70°C
Body dimensions: 127x76.2x40mm
Power consumption without load: <0.5W
Number of outputs: 1
Output current: 6.7A
Maximum current: 10.4A
Output voltage range: 45.6...50.4V DC
Output voltage: 48V DC
Supply voltage: 90...264V AC; 127...370V DC
Efficiency: 94%
Power: 0.5kW
Additional functions: active PFC; auxiliary DC output 12V/500mA; auxiliary standby output 5V DC
Protection: anti-overload OPP; anti-overvoltage OVP; overheating OTP; short circuit protection SCP
Related items: BVH-21T-P1.1; SVH-200BK22; VHR-3N
Caution!: rated parameters obtained at full load; the maximum current only with additional cooling
Kind of power supply: open
Відгуки про товар
Написати відгук
Технічний опис EPP-500-48 MEAN WELL
Description: AC/DC CONVERTER 48V 322W, Current - Output 1: 6.7 A, Voltage - Isolation: 3 kV, Number of Outputs: 1, Part Status: Active, Voltage - Output 1: 48V, Efficiency: 94%, Approval Agency: CB, CE, cURus, EAC, TUV, Applications: ITE (Commercial), Operating Temperature: -30°C ~ 70°C (With Derating), Type: Open Frame, Voltage - Input: 80 ~ 264 VAC, 113 ~ 370 VDC, Mounting Type: Chassis Mount, Size / Dimension: 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm), Features: Adjustable Output, PFC, Standby Output, Universal Input, Power (Watts): 322W (499W Forced Air), Packaging: Box.
Інші пропозиції EPP-500-48 за ціною від 4653.80 грн до 5822.42 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EPP-500-48 | MEAN WELL USA Inc. |
Description: AC/DC CONVERTER 48V 322W Current - Output 1: 6.7 A Voltage - Isolation: 3 kV Number of Outputs: 1 Part Status: Active Voltage - Output 1: 48V Efficiency: 94% Approval Agency: CB, CE, cURus, EAC, TUV Applications: ITE (Commercial) Operating Temperature: -30°C ~ 70°C (With Derating) Type: Open Frame Voltage - Input: 80 ~ 264 VAC, 113 ~ 370 VDC Mounting Type: Chassis Mount Size / Dimension: 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) Features: Adjustable Output, PFC, Standby Output, Universal Input Power (Watts): 322W (499W Forced Air) Packaging: Box |
на замовлення 118 шт: термін постачання 21-31 дні (днів) |
|
| EPP-500-48 |
|
Виробник: MEAN WELL USA Inc.
Description: AC/DC CONVERTER 48V 322W
Current - Output 1: 6.7 A
Voltage - Isolation: 3 kV
Number of Outputs: 1
Part Status: Active
Voltage - Output 1: 48V
Efficiency: 94%
Approval Agency: CB, CE, cURus, EAC, TUV
Applications: ITE (Commercial)
Operating Temperature: -30°C ~ 70°C (With Derating)
Type: Open Frame
Voltage - Input: 80 ~ 264 VAC, 113 ~ 370 VDC
Mounting Type: Chassis Mount
Size / Dimension: 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm)
Features: Adjustable Output, PFC, Standby Output, Universal Input
Power (Watts): 322W (499W Forced Air)
Packaging: Box
Description: AC/DC CONVERTER 48V 322W
Current - Output 1: 6.7 A
Voltage - Isolation: 3 kV
Number of Outputs: 1
Part Status: Active
Voltage - Output 1: 48V
Efficiency: 94%
Approval Agency: CB, CE, cURus, EAC, TUV
Applications: ITE (Commercial)
Operating Temperature: -30°C ~ 70°C (With Derating)
Type: Open Frame
Voltage - Input: 80 ~ 264 VAC, 113 ~ 370 VDC
Mounting Type: Chassis Mount
Size / Dimension: 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm)
Features: Adjustable Output, PFC, Standby Output, Universal Input
Power (Watts): 322W (499W Forced Air)
Packaging: Box
на замовлення 118 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 5822.42 грн |
| 5+ | 5343.83 грн |
| 10+ | 5106.53 грн |
| 25+ | 4653.80 грн |
