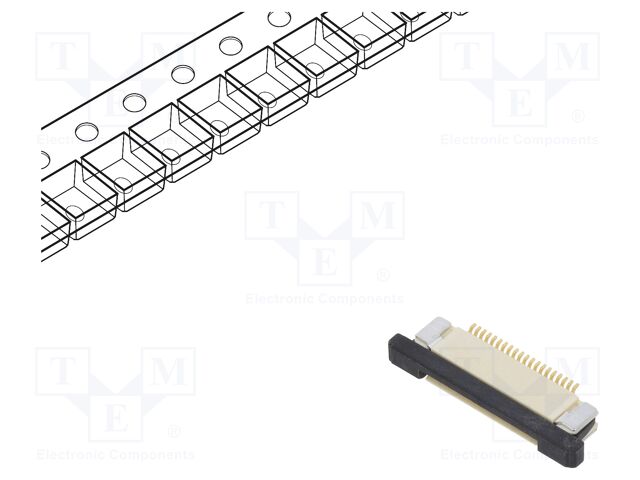

F32Q-1A7H1-11020 Amphenol ICC (FCI)
Виробник: Amphenol ICC (FCI)Description: CONN FFC FPC TOP 20POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 105°C
Termination: Solder
Height Above Board: 0.079" (2.00mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Straight
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
на замовлення 12600 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1800+ | 56.03 грн |
| 3600+ | 51.38 грн |
| 5400+ | 49.93 грн |
| 9000+ | 45.20 грн |
| 12600+ | 44.14 грн |
Відгуки про товар
Написати відгук
Технічний опис F32Q-1A7H1-11020 Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 20POS 0.5MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Pitch: 0.020" (0.50mm), Operating Temperature: -40°C ~ 105°C, Termination: Solder, Height Above Board: 0.079" (2.00mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.33mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Cable End Type: Straight, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Top.
Інші пропозиції F32Q-1A7H1-11020 за ціною від 52.48 грн до 124.52 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F32Q-1A7H1-11020 | Виробник : AMPHENOL AORORA |
Category: Raster signal connectors 2,00mm Description: Connector: FFC/FPC; female; PIN: 20; F32Q; 500mA; 50V; horizontal Type of connector: FFC/FPC Contact plating: selectively gold plated Electrical mounting: SMT Rated voltage: 50V Current rating: 0.5A Manufacturer series: F32Q Number of pins: 20 Body material: LCP Contact material: phosphor bronze Tape pitch: 0.5mm Spatial orientation: horizontal Connector variant: top contacts; ZIF Flammability rating: UL94V-0 Operating temperature: -40...105°C Kind of connector: female |
на замовлення 1742 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
|
|
F32Q-1A7H1-11020 | Виробник : AMPHENOL AORORA |
Category: Raster signal connectors 2,00mm Description: Connector: FFC/FPC; female; PIN: 20; F32Q; 500mA; 50V; horizontal Type of connector: FFC/FPC Contact plating: selectively gold plated Electrical mounting: SMT Rated voltage: 50V Current rating: 0.5A Manufacturer series: F32Q Number of pins: 20 Body material: LCP Contact material: phosphor bronze Tape pitch: 0.5mm Spatial orientation: horizontal Connector variant: top contacts; ZIF Flammability rating: UL94V-0 Operating temperature: -40...105°C Kind of connector: female кількість в упаковці: 1 шт |
на замовлення 1742 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||
|
|
F32Q-1A7H1-11020 | Виробник : Amphenol ICC (FCI) |
Description: CONN FFC FPC TOP 20POS 0.5MM R/A Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 20 Pitch: 0.020" (0.50mm) Operating Temperature: -40°C ~ 105°C Termination: Solder Height Above Board: 0.079" (2.00mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.33mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled Cable End Type: Straight Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Top |
на замовлення 13057 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
F32Q-1A7H1-11020 | Виробник : Amphenol Aorora |
FFC & FPC Connectors F32Q-1A7H1-11020-Slider type |
на замовлення 11107 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
F32Q-1A7H1-11020 | Виробник : AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - F32Q-1A7H1-11020 - FFC/FPC-Leiterplattensteckverbinder, abgewinkelt, ZIF, 0.5 mm, 20 Kontakt(e), Buchse, F32Q tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.3mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 20Kontakt(e) euEccn: NLR Kontaktposition: Oben Produktpalette: F32Q productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (12-Jan-2017) |
на замовлення 482 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
| F32Q-1A7H1-11020 | Виробник : Amphenol |
Flex Connector 0.50mm Pitch Height 2.00mm Right angle Slider type ZIF Upper contact 20 position |
товару немає в наявності |
||||||||||||||||||
 |
F32Q-1A7H1-11020 | Виробник : Amphenol Communications Solutions-FCI |
Conn FFC/FPC Connector SKT 20 POS 0.5mm Solder RA SMD T/R |
товару немає в наявності |
