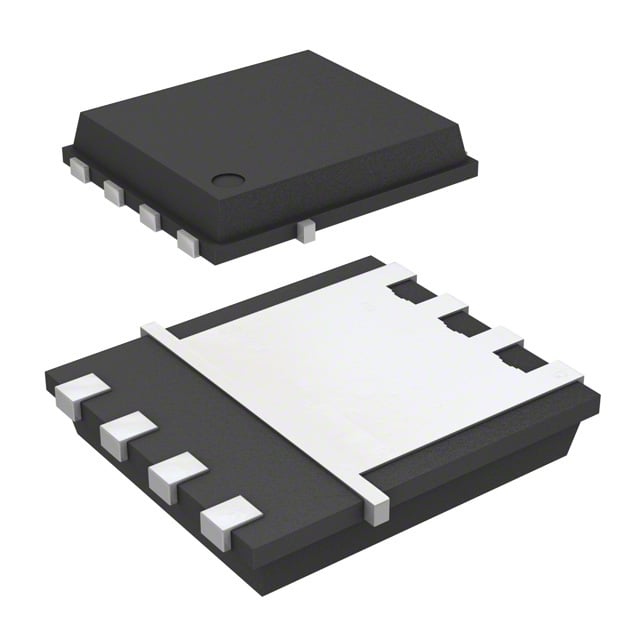

FDMC8676 Fairchild Semiconductor

Description: MOSFET N-CH 30V 16A/18A POWER33, Packaging: Bulk, Package / Case: 8-PowerTDFN, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 16A (Ta), 18A (Tc), Rds On (Max) @ Id, Vgs: 5.9mOhm @ 14.7A, 10V, Power Dissipation (Max): 2.3W (Ta), 41W (Tc), Vgs(th) (Max) @ Id: 3V @ 250µA, Supplier Device Package: Power33, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 30 V, Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 1935 pF @ 15 V.
