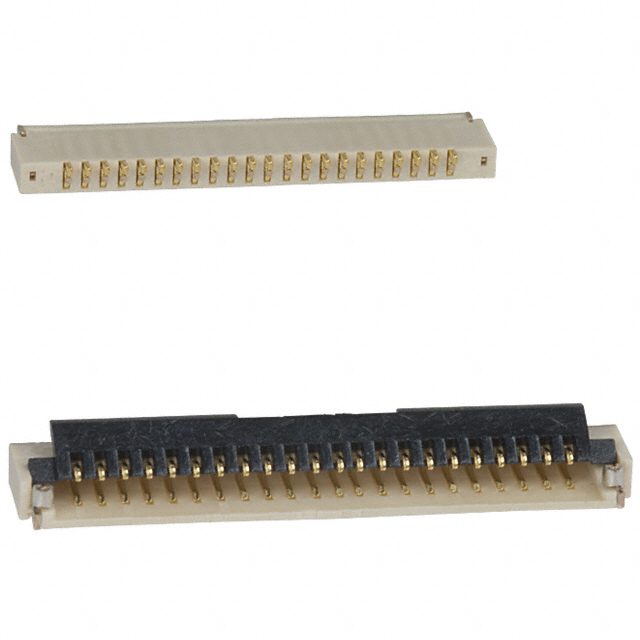

FH19SC-22S-0.5SH(09) Hirose Electric Co Ltd
Виробник: Hirose Electric Co LtdDescription: CONN FFC BOTTOM 22POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 22
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.037" (0.95mm)
Locking Feature: Flip Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type: Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
на замовлення 8538 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 109.03 грн |
| 10+ | 85.14 грн |
| 25+ | 78.53 грн |
| 50+ | 69.31 грн |
| 100+ | 65.18 грн |
| 250+ | 60.09 грн |
| 500+ | 55.58 грн |
| 1000+ | 52.27 грн |
| 2500+ | 48.19 грн |
Відгуки про товар
Написати відгук
Технічний опис FH19SC-22S-0.5SH(09) Hirose Electric Co Ltd
Description: CONN FFC BOTTOM 22POS 0.5MM R/A, Packaging: Tape & Reel (TR), Features: Solder Retention, Zero Insertion Force (ZIF), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 22, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 85°C, Termination: Solder, Height Above Board: 0.037" (0.95mm), Locking Feature: Flip Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS), Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Halogen Free, Cable End Type: Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom, Part Status: Active.
Інші пропозиції FH19SC-22S-0.5SH(09) за ціною від 51.87 грн до 121.02 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FH19SC-22S-0.5SH(09) | Виробник : Hirose Connector |
FFC & FPC Connectors 22P SMT HORIZONTAL .5MM PITCH |
на замовлення 23948 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
| FH19SC-22S-0.5SH(09) | Виробник : HIROSE |
Category: Connectors FFC/FPC 0.5mm Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; FH19; PIN: 22 Type of connector: FFC/FPC Contact plating: gold-plated Electrical mounting: SMT Current rating: 0.5A Rated voltage: 50V Manufacturer series: FH19 Number of pins: 22 Tape pitch: 0.5mm Spatial orientation: horizontal Connector variant: bottom contacts; low profile; ZIF Contact material: phosphor bronze Body material: LCP Flammability rating: UL94V-0 Operating temperature: -55...85°C кількість в упаковці: 5000 шт |
товару немає в наявності |
||||||||||||||||
|
|
FH19SC-22S-0.5SH(09) | Виробник : Hirose Electric Co Ltd |
Description: CONN FFC BOTTOM 22POS 0.5MM R/A Packaging: Tape & Reel (TR) Features: Solder Retention, Zero Insertion Force (ZIF) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 22 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 85°C Termination: Solder Height Above Board: 0.037" (0.95mm) Locking Feature: Flip Lock Material Flammability Rating: UL94 V-0 Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm Housing Material: Liquid Crystal Polymer (LCP), Halogen Free Cable End Type: Tapered Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Bottom Part Status: Active |
товару немає в наявності |
|||||||||||||||
| FH19SC-22S-0.5SH(09) | Виробник : HIROSE |
Category: Connectors FFC/FPC 0.5mm Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; FH19; PIN: 22 Type of connector: FFC/FPC Contact plating: gold-plated Electrical mounting: SMT Current rating: 0.5A Rated voltage: 50V Manufacturer series: FH19 Number of pins: 22 Tape pitch: 0.5mm Spatial orientation: horizontal Connector variant: bottom contacts; low profile; ZIF Contact material: phosphor bronze Body material: LCP Flammability rating: UL94V-0 Operating temperature: -55...85°C |
товару немає в наявності |
