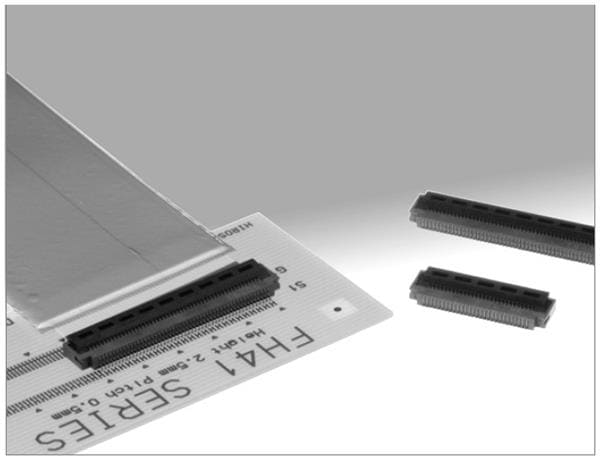

FH41-40S-0.5SH Hirose Connector

Description: CONN FFC BOTTOM 40POS 0.5MM R/A, Connector/Contact Type: Contacts, Bottom, Flat Flex Type: FFC, Cable End Type: Tabbed, Housing Material: Liquid Crystal Polymer (LCP), Halogen Free, FFC, FCB Thickness: 0.30mm, Contact Material: Phosphor Bronze, Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free, Material Flammability Rating: UL94 V-0, Locking Feature: Flip Lock, Backlock, Height Above Board: 0.098" (2.50mm), Termination: Solder, Operating Temperature: -40°C ~ 105°C, Pitch: 0.020" (0.50mm), Number of Positions: 40, Mounting Type: Surface Mount, Right Angle, Voltage Rating: 50V, Features: Solder Retention, Packaging: Tape & Reel (TR).
