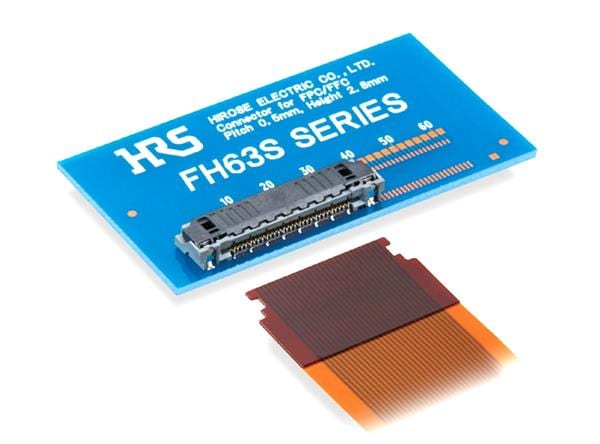

FH63S-20S-0.5SH Hirose Electric Co Ltd
Виробник: Hirose Electric Co Ltd
Description: CONN FFC BOTTOM 20POS 0.5MM R/A
Features: Solder Retention
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 125°C
Termination: Solder
Height Above Board: 0.110" (2.80mm)
Locking Feature: Flip Lock, Backlock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Contact Material: Copper Alloy
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type: Notched
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
Відгуки про товар
Написати відгук
Технічний опис FH63S-20S-0.5SH Hirose Electric Co Ltd
Description: CONN FFC BOTTOM 20POS 0.5MM R/A, Features: Solder Retention, Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 125°C, Termination: Solder, Height Above Board: 0.110" (2.80mm), Locking Feature: Flip Lock, Backlock, Material Flammability Rating: UL94 V-0, Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free, Contact Material: Copper Alloy, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Halogen Free, Cable End Type: Notched, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom, Part Status: Active.
Інші пропозиції FH63S-20S-0.5SH за ціною від 76.73 грн до 158.86 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FH63S-20S-0.5SH | HIROSE |
Category: Connectors FFC/FPC 0.5mm Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; FH63S; PIN: 20 Type of connector: FFC/FPC Contact plating: gold-plated Electrical mounting: SMT Current rating: 0.5A Rated voltage: 50V Manufacturer series: FH63S Number of pins: 20 Body material: polyamide Contact material: phosphor bronze Tape pitch: 0.5mm Spatial orientation: horizontal Connector variant: bottom contacts; ZIF Flammability rating: UL94V-0 Operating temperature: -55...105°C Locking system: FlipLock |
на замовлення 3479 шт: термін постачання 14-30 дні (днів) |
|
||||||||||||||||
|
|
FH63S-20S-0.5SH | Hirose Electric Co Ltd |
Description: CONN FFC BOTTOM 20POS 0.5MM R/A Part Status: Active Connector/Contact Type: Contacts, Bottom Flat Flex Type: FFC, FPC Cable End Type: Notched Housing Material: Liquid Crystal Polymer (LCP), Halogen Free FFC, FCB Thickness: 0.30mm Contact Material: Copper Alloy Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free Material Flammability Rating: UL94 V-0 Locking Feature: Flip Lock, Backlock Height Above Board: 0.110" (2.80mm) Termination: Solder Operating Temperature: -55°C ~ 125°C Pitch: 0.020" (0.50mm) Number of Positions: 20 Mounting Type: Surface Mount, Right Angle Voltage Rating: 50V Contact Finish: Gold Features: Solder Retention Packaging: Cut Tape (CT) |
на замовлення 5955 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
FH63S-20S-0.5SH | Hirose Connector |
FFC & FPC Connectors Receptacle, 20 Position 0.5mm Pitch, 2.8mm Height, One Action Lock, Bottom Contact |
на замовлення 3489 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| FH63S-20S-0.5SH |
|
Виробник: HIROSE
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; FH63S; PIN: 20
Type of connector: FFC/FPC
Contact plating: gold-plated
Electrical mounting: SMT
Current rating: 0.5A
Rated voltage: 50V
Manufacturer series: FH63S
Number of pins: 20
Body material: polyamide
Contact material: phosphor bronze
Tape pitch: 0.5mm
Spatial orientation: horizontal
Connector variant: bottom contacts; ZIF
Flammability rating: UL94V-0
Operating temperature: -55...105°C
Locking system: FlipLock
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; FH63S; PIN: 20
Type of connector: FFC/FPC
Contact plating: gold-plated
Electrical mounting: SMT
Current rating: 0.5A
Rated voltage: 50V
Manufacturer series: FH63S
Number of pins: 20
Body material: polyamide
Contact material: phosphor bronze
Tape pitch: 0.5mm
Spatial orientation: horizontal
Connector variant: bottom contacts; ZIF
Flammability rating: UL94V-0
Operating temperature: -55...105°C
Locking system: FlipLock
на замовлення 3479 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 134.83 грн |
| 10+ | 106.13 грн |
| 25+ | 98.67 грн |
| 50+ | 94.52 грн |
| 100+ | 90.37 грн |
| FH63S-20S-0.5SH |
|
Виробник: Hirose Electric Co Ltd
Description: CONN FFC BOTTOM 20POS 0.5MM R/A
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FFC, FPC
Cable End Type: Notched
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
FFC, FCB Thickness: 0.30mm
Contact Material: Copper Alloy
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Flip Lock, Backlock
Height Above Board: 0.110" (2.80mm)
Termination: Solder
Operating Temperature: -55°C ~ 125°C
Pitch: 0.020" (0.50mm)
Number of Positions: 20
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention
Packaging: Cut Tape (CT)
Description: CONN FFC BOTTOM 20POS 0.5MM R/A
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FFC, FPC
Cable End Type: Notched
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
FFC, FCB Thickness: 0.30mm
Contact Material: Copper Alloy
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Flip Lock, Backlock
Height Above Board: 0.110" (2.80mm)
Termination: Solder
Operating Temperature: -55°C ~ 125°C
Pitch: 0.020" (0.50mm)
Number of Positions: 20
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention
Packaging: Cut Tape (CT)
на замовлення 5955 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 158.86 грн |
| 10+ | 125.06 грн |
| 25+ | 115.30 грн |
| 50+ | 101.75 грн |
| 100+ | 95.68 грн |
| 250+ | 88.21 грн |
| 500+ | 81.59 грн |
| 1000+ | 76.73 грн |
| FH63S-20S-0.5SH |
|
Виробник: Hirose Connector
FFC & FPC Connectors Receptacle, 20 Position 0.5mm Pitch, 2.8mm Height, One Action Lock, Bottom Contact
FFC & FPC Connectors Receptacle, 20 Position 0.5mm Pitch, 2.8mm Height, One Action Lock, Bottom Contact
на замовлення 3489 шт:
термін постачання 21-30 дні (днів)
