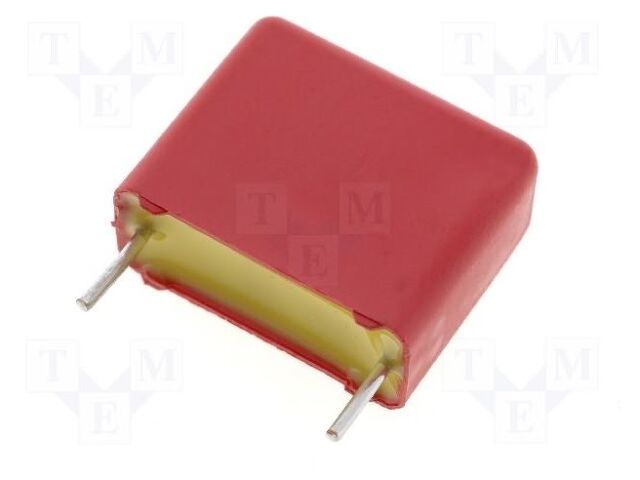

FKP1T023306D00JSSD WIMA
Виробник: WIMA
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 33nF; Uoper: 1.6kVDC; Uoper max: 1.6kVDC
Kind of material: flame retardant
Mounting: THT
Capacitor application: for high current applications; high frequency circuits; impulse circuits
Capacitors features: low dielectric loss factor; self-healing feature
Type of capacitor: polypropylene
Flammability rating: UL94V-0
Operating temperature: -55...100°C
Capacitance: 33nF
Terminal pitch: 27.5mm
Body dimensions: 13x24x31.5mm
Tolerance: ±5%
Max. operating voltage: 650V AC; 1.6kV DC
Operating voltage: 1.6kV DC
Pulse resistance: 11kV/μs
Climate class: 55/100/56
| Кількість | Ціна |
|---|---|
| 3+ | 167.99 грн |
| 10+ | 107.35 грн |
Відгуки про товар
Написати відгук
Технічний опис FKP1T023306D00JSSD WIMA
Category: THT Film Capacitors, Description: Capacitor: polypropylene; 33nF; Uoper: 1.6kVDC; Uoper max: 1.6kVDC, Kind of material: flame retardant, Mounting: THT, Capacitor application: for high current applications; high frequency circuits; impulse circuits, Capacitors features: low dielectric loss factor; self-healing feature, Type of capacitor: polypropylene, Flammability rating: UL94V-0, Operating temperature: -55...100°C, Capacitance: 33nF, Terminal pitch: 27.5mm, Body dimensions: 13x24x31.5mm, Tolerance: ±5%, Max. operating voltage: 650V AC; 1.6kV DC, Operating voltage: 1.6kV DC, Pulse resistance: 11kV/μs, Climate class: 55/100/56.
Інші пропозиції FKP1T023306D00JSSD за ціною від 75.94 грн до 210.53 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FKP1T023306D00JSSD | Виробник : WIMA |
Description: FKP 1 0.033 F 1600 VDC 13X24X31. Packaging: Bulk Tolerance: ±5% Package / Case: Radial Mounting Type: Through Hole Operating Temperature: -55°C ~ 105°C Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Lead Spacing: 1.083" (27.50mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - AC: 650V Voltage Rating - DC: 1600V (1.6kV) Height - Seated (Max): 0.945" (24.00mm) Capacitance: 0.033 µF Size / Dimension: 1.240" L x 0.512" W (31.50mm x 13.00mm) |
на замовлення 58 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
FKP1T023306D00JSSD | Виробник : WIMA |
Film Capacitors .033uF 1600 Volts 5% |
на замовлення 18 шт: термін постачання 21-30 дні (днів) |
|
