FLUKE-1577
Виробник: FLUKECategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 0.1÷600mV,6V,60V,600V,1kV
Continuity test: acoustic indication; <25Ω
Measuring instrument features: auto and manual ranging; automatic discharge of capacitance charge function; automatic power-off; automatic stop of insulation test when voltage higher than 30V is detected; HOLD function; indicates incorrect connection of test leads; insulation resistance test
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Power supply: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010

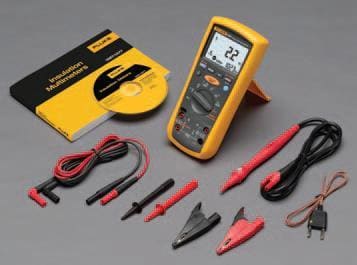

Standard equipment: crocodile clips FLK-AC285; harda case FLK-C101; test leads FLK-TL224 SureGrip; test probe FLK-TP165X
Type of meter: digital multimeter
Optional equipment: FLK-C25 soft cover
IP rating: IP40
Kind of display used: LCD
True effective value measurement: True RMS AC
Illumination: yes
DC current measuring range: 10µA...60mA; 400mA
AC current measuring range: 10µA...60mA; 400mA
DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
Dimensions (W x H x D): 100x203x50mm
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 50MΩ
DC voltage measuring accuracy: ±(0.2% + 2 digit)
DC current measuring accuracy: ±(1% + 2 digit)
Resistance measuring accuracy: ±(1.2%+2 digit)
AC current measuring accuracy: ±(2% + 2 digit)
AC voltage measuring accuracy: ±(2% + 3 digit)
Insulation resistance measuring accuracy: ±(2% + 5digit)
Test voltage: 500V; 1kV
Weight with battery: 550g
Insulation resistance measuring ranges: 0.1...60MΩ; 500MΩ
Display parameters: (6000)
Measurement: AC current; AC voltage; DC current; DC voltage; insulation resistance; resistance
на замовлення 4 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 65722.38 грн |
Відгуки про товар
Написати відгук
Технічний опис FLUKE-1577 FLUKE
Description: FLUKE - FLUKE 1577 - Digitalmultimeter f. Isolationsprüfung, 1577, 6000 Zählwerte, TRMS, auto/manuelle Bereichswahl, 3.75, tariffCode: 90303100, Messwert Gleichspannung, max.: 1kV, Messwert Wechselspannung, max.: 1kV, Messwert Widerstand, max.: 50Mohm, Messwert Gleichstrom, max.: 400mA, rohsCompliant: Y-EX, hazardous: false, rohsPhthalatesCompliant: TBA, usEccn: 3A992.a, Schritte: 6000, Herstellergewährleistung: 3 Jahre, euEccn: NLR, Anzahl der Stellen: 3.75, DMM-Messverfahren: Echteffektivwert, DMM-Funktionen: Strom, Spannung, Kapazität, Frequenz, Widerstand, Temperatur, Produktpalette: -, productTraceability: No, Messwert Wechselstrom, max.: 400mA, Bereichswahl: Automatisch, manuell, SVHC: No SVHC (15-Jun-2015).
