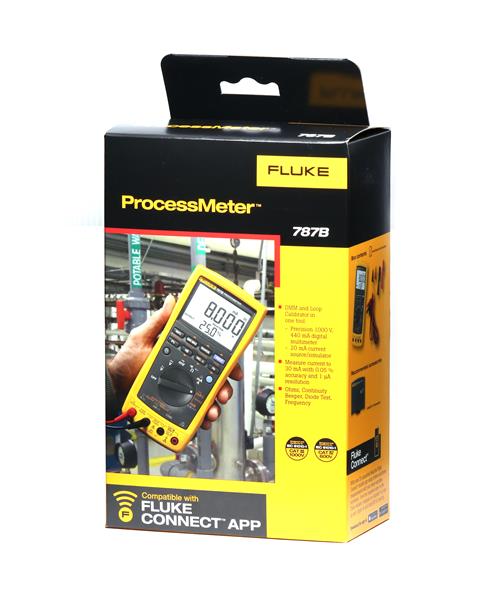

FLUKE-787B

Category: Calibrators, Description: Meter: multimeter calibrator; Diode test: 0.3mA@600mV, Related items: POM-5900A/POM; POM-6173A; POM-7519A, Kind of display used: LCD, AC current measuring range: 0.001mA...1A, DC current measuring range: 1µA...30mA; 1A, AC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV, DC voltage measuring range: 1...400mV; 4V; 40V; 400V; 1kV, Resistance measuring range: 100mΩ...400Ω; 4kΩ; 400kΩ; 4MΩ; 40MΩ, Diode test: 0.3mA @600mV, Frequency measuring range: 10mHz...199.99Hz; 1999.9Hz; 19.99kHz, Frequency measuring accuracy: ±(0.005%+1 digit), DC voltage measuring accuracy: ±(0.1% + 1 digit), Resistance measuring accuracy: ±(0.2%+1 digit), DC current measuring accuracy: ±(0.2% + 2 digit), Dimensions: 203x100x50mm, AC voltage measuring accuracy: ±(0.7% + 2 digit), AC current measuring accuracy: ±(1% + 2 digit), Measuring instrument features: automatic and manual setting of step function; HOLD function; MIN/MAX/MEAN/REL function; simultaneous readout in mA and % of range; source DC current / calibrate loop current, source/simulate, Standard equipment: crocodile clips FLK-AC72; test leads FLK-TL71, Optional equipment: 240A AC/DC FLK-I200S current clamp probe; 400A AC/DC FLK-I410 current clamp probe; crocodile clip FLK-AC89; crocodile clip FLK-AC220; crocodile clip FLK-AC283; crocodile clip FLK-AC285; FLK-C510 - soft cover; FLK-FVF-SC2 software; FLK-TL225 set, Continuity test: acoustic indication; .
