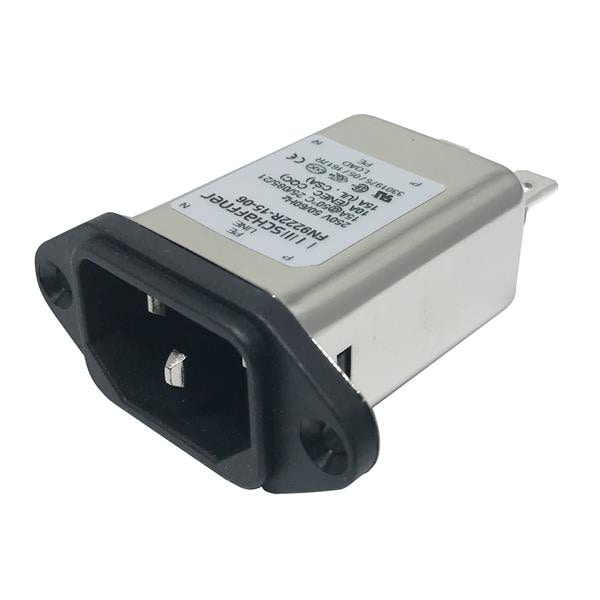

FN9222R-15-06 SCHAFFNER

Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; Inom: 15A; Ir: 310uA; 250VAC
Current rating: 15A
Manufacturer series: FN9222
Operating temperature: -25...85°C
Connector variant: C14 (E)
Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283
Leads: connectors
Kind of connector: male
Design: filter
Mechanical mounting: for panel mounting; screw
Connector: socket
Capacitance Cy: 2.2nF
Capacitance Cx: 0.1µF
Inductance: 75µH
Leakage current: 0.31mA
Leads dimensions: 6.3x0.8mm
Rated voltage: 250V AC
Resistance: 1MΩ
Type of connector: AC supply
на замовлення 38 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
1+ | 428.33 грн |
3+ | 347.43 грн |
8+ | 328.57 грн |
25+ | 318.35 грн |
Відгуки про товар
Написати відгук
Технічний опис FN9222R-15-06 SCHAFFNER
Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; Inom: 15A; Ir: 310uA; 250VAC, Current rating: 15A, Manufacturer series: FN9222, Operating temperature: -25...85°C, Connector variant: C14 (E), Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283, Leads: connectors, Kind of connector: male, Design: filter, Mechanical mounting: for panel mounting; screw, Connector: socket, Capacitance Cy: 2.2nF, Capacitance Cx: 0.1µF, Inductance: 75µH, Leakage current: 0.31mA, Leads dimensions: 6.3x0.8mm, Rated voltage: 250V AC, Resistance: 1MΩ, Type of connector: AC supply, кількість в упаковці: 1 шт.
Інші пропозиції FN9222R-15-06 за ціною від 277.80 грн до 656.05 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN9222R-15-06 | Виробник : TE Connectivity Schaffner |
![]() Features: Bleed Resistor, Front or Rear Side Mount Packaging: Tray Filter Type: Filtered (EMI, RFI) - Commercial Connector Type: Receptacle, Male Blades Mounting Type: Panel Mount, Flange Number of Positions: 3 Termination: Quick Connect - 0.250" (6.3mm) Approval Agency: CQC, CSA, ENEC, UL Ingress Protection: IP40 Panel Cutout Dimensions: Rectangular - 28.50mm x 21.50mm Connector Style: IEC 320-C14 Material Flammability Rating: UL94 V-2 Accomodates a Fuse: No Part Status: Active Current Rating - Filter: 15A |
на замовлення 9004 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
![]() |
FN9222R-15-06 | Виробник : SCHAFFNER |
![]() Description: Connector: AC supply; socket; male; Inom: 15A; Ir: 310uA; 250VAC Current rating: 15A Manufacturer series: FN9222 Operating temperature: -25...85°C Connector variant: C14 (E) Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283 Leads: connectors Kind of connector: male Design: filter Mechanical mounting: for panel mounting; screw Connector: socket Capacitance Cy: 2.2nF Capacitance Cx: 0.1µF Inductance: 75µH Leakage current: 0.31mA Leads dimensions: 6.3x0.8mm Rated voltage: 250V AC Resistance: 1MΩ Type of connector: AC supply кількість в упаковці: 1 шт |
на замовлення 38 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||
|
FN9222R-15-06 | Виробник : Schaffner |
![]() |
на замовлення 483 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
![]() |
FN9222R-15-06 | Виробник : SCHAFFNER - TE CONNECTIVITY |
![]() tariffCode: 85366990 rohsCompliant: YES Schaltertyp: - hazardous: false rohsPhthalatesCompliant: YES Sicherungsgröße: - Steckverbindermontage: Einrast-, Flanschmontage IP-Schutzart: IP40 usEccn: EAR99 Anwendungen des Gerätestecker-Kombielements: Universell Nennstrom: 15A euEccn: NLR Steckverbinder: IEC C14 Sicherungshalter: - Produktpalette: FN 9222 productTraceability: No Nennspannung: 250VAC Steckverbinderanschlüsse: Steckanschluss SVHC: No SVHC (14-Jun-2023) |
на замовлення 151 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
![]() |
FN9222R-15-06 | Виробник : Schaffner |
![]() |
товару немає в наявності |
