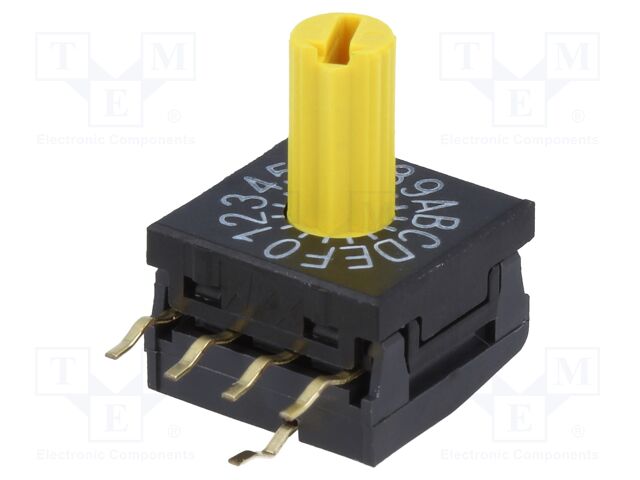

FR01KC16H-S NKK SWITCHES
Виробник: NKK SWITCHES
Category: Encoding Switches
Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; 10x10x4mm
Type of switch: encoding switch
Stable positions number: 16
Switching method: BBM (non-shorting)
Number of positions: 16
Body material: polyamide
DC contacts rating @R: 0.1A / 5V DC
Leads: angled; for PCB
Contact material: copper alloy
Contact plating: gold-plated
Mechanical durability: 10000 cycles
Max. contact resistance:: 100mΩ
Min. insulation resistance: 1GΩ
Body dimensions: 10x10x4mm
Operating temperature: -25...85°C
Number of terminals: 5
Kind of material: fiber glass reinforced
Electrical life: 10000 cycles
Illumination: none
Terminal pitch: 2.54mm
Mounting: THT
Manufacturer series: FR01
Kind of encoding switch: HEX/BCD
Poles number: 1
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 368.30 грн |
| 10+ | 285.27 грн |
| 50+ | 252.26 грн |
Відгуки про товар
Написати відгук
Технічний опис FR01KC16H-S NKK SWITCHES
Category: Encoding Switches, Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; 10x10x4mm, Type of switch: encoding switch, Stable positions number: 16, Switching method: BBM (non-shorting), Number of positions: 16, Body material: polyamide, DC contacts rating @R: 0.1A / 5V DC, Leads: angled; for PCB, Contact material: copper alloy, Contact plating: gold-plated, Mechanical durability: 10000 cycles, Max. contact resistance:: 100mΩ, Min. insulation resistance: 1GΩ, Body dimensions: 10x10x4mm, Operating temperature: -25...85°C, Number of terminals: 5, Kind of material: fiber glass reinforced, Electrical life: 10000 cycles, Illumination: none, Terminal pitch: 2.54mm, Mounting: THT, Manufacturer series: FR01, Kind of encoding switch: HEX/BCD, Poles number: 1.
Інші пропозиції FR01KC16H-S за ціною від 291.17 грн до 426.44 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FR01KC16H-S | NKK Switches |
Description: SW ROTARY DIP HEX COMP 0.1A 5V Packaging: Tube Contact Finish: Gold Voltage Rating: 5VDC Current Rating (Amps): 100mA Mounting Type: Through Hole, Right Angle Pitch: 0.100" (2.54mm), Full Circuit: Hexadecimal Complement Operating Temperature: -25°C ~ 85°C Termination Style: PC Pin Actuator Type: Rotary with Shaft Height Above Board: 0.394" (10.00mm) Actuator Level: Raised Washable: No Contact Material: Copper Alloy Number of Positions: 16 |
на замовлення 148 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
FR01KC16H-S | NKK Switches |
Coded Rotary Switches 10MM HEXA 16P SHAFT COMPLEMENT CODED R/A |
на замовлення 100 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| FR01KC16H-S |
|
Виробник: NKK Switches
Description: SW ROTARY DIP HEX COMP 0.1A 5V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 5VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm), Full
Circuit: Hexadecimal Complement
Operating Temperature: -25°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Rotary with Shaft
Height Above Board: 0.394" (10.00mm)
Actuator Level: Raised
Washable: No
Contact Material: Copper Alloy
Number of Positions: 16
Description: SW ROTARY DIP HEX COMP 0.1A 5V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 5VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm), Full
Circuit: Hexadecimal Complement
Operating Temperature: -25°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Rotary with Shaft
Height Above Board: 0.394" (10.00mm)
Actuator Level: Raised
Washable: No
Contact Material: Copper Alloy
Number of Positions: 16
на замовлення 148 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 426.44 грн |
| 10+ | 357.39 грн |
| 50+ | 323.90 грн |
| 100+ | 291.17 грн |
| FR01KC16H-S |
|
Виробник: NKK Switches
Coded Rotary Switches 10MM HEXA 16P SHAFT COMPLEMENT CODED R/A
Coded Rotary Switches 10MM HEXA 16P SHAFT COMPLEMENT CODED R/A
на замовлення 100 шт:
термін постачання 21-30 дні (днів)
