Продукція > SAMTEC > FTS-104-04-L-D

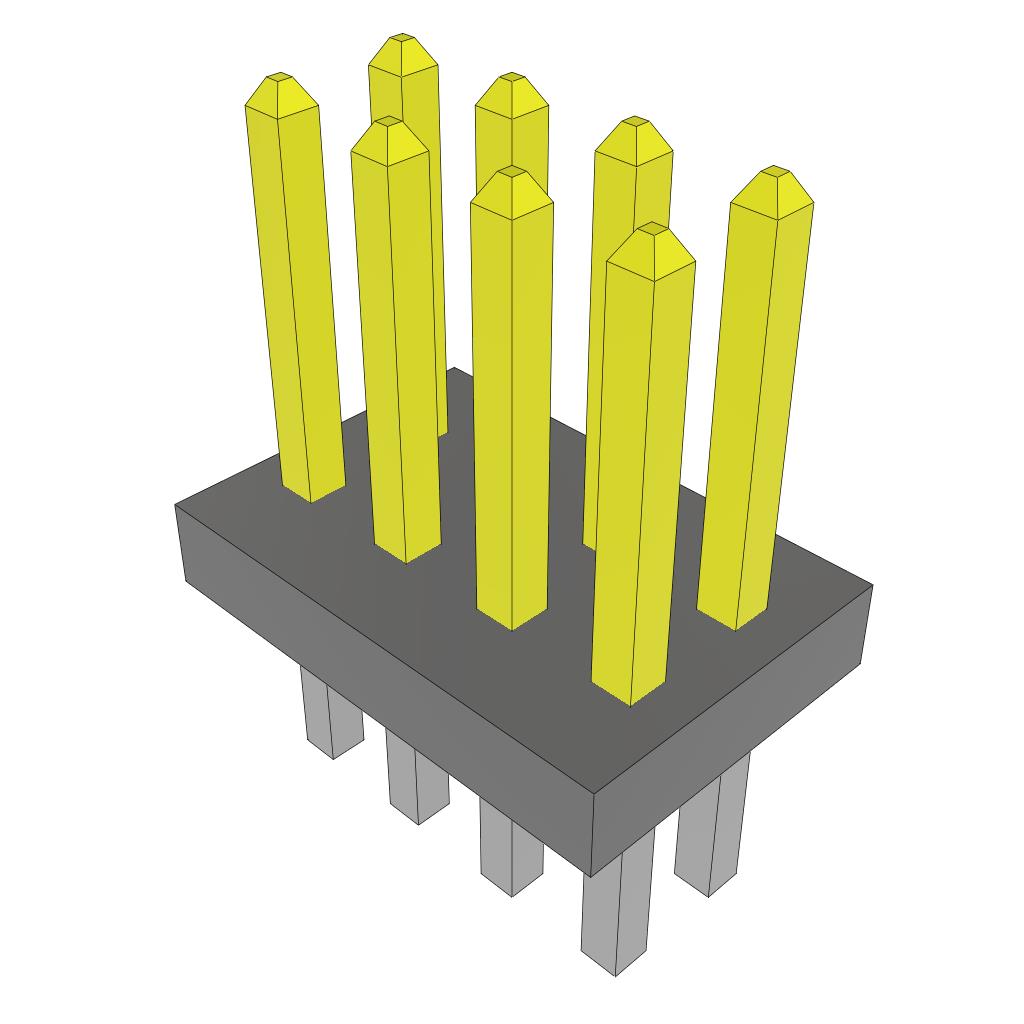

FTS-104-04-L-D

FTS-104-04-L-D Samtec

fts-1369972.pdf Виробник: Samtec
Headers & Wire Housings .050" Micro Low Profile Terminal Strip
на замовлення 168 шт:
термін постачання 21-30 дні (днів)
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис FTS-104-04-L-D Samtec

Description: CONN HEADER VERT 8POS 1.27MM, Packaging: Bulk, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Through Hole, Number of Positions: 8, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.034" (0.86mm), Shrouding: Unshrouded, Overall Contact Length: 0.274" (6.96mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.150" (3.81mm).

Інші пропозиції FTS-104-04-L-D

Фото Назва Виробник Інформація Доступність
Ціна
FTS-104-04-L-D FTS-104-04-L-D Виробник : Samtec fts.pdf Conn Unshrouded Header HDR 8 POS 1.27mm Solder ST Top Entry Thru-Hole Layer
товару немає в наявності
В кошику  од. на суму  грн.
FTS-104-04-L-D FTS-104-04-L-D Виробник : Samtec Inc. fts-1xx-xx-xx-xx-xx-x-xx-mkt.pdf Description: CONN HEADER VERT 8POS 1.27MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.034" (0.86mm)
Shrouding: Unshrouded
Overall Contact Length: 0.274" (6.96mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
товару немає в наявності
В кошику  од. на суму  грн.
