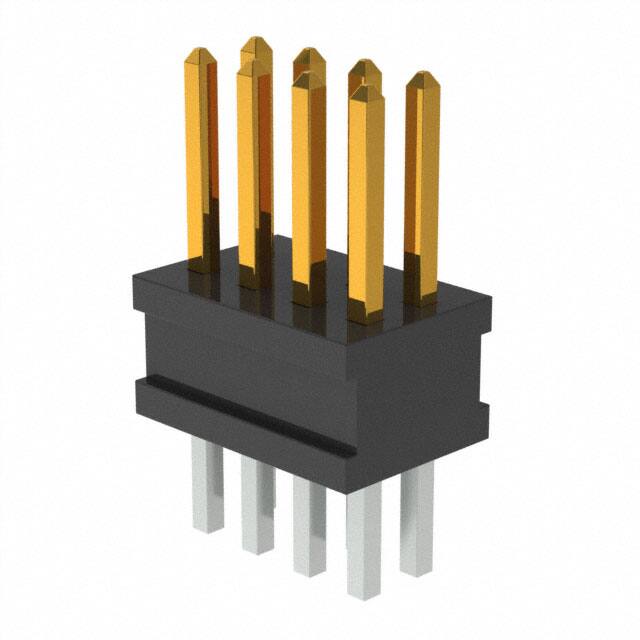

FTSH-104-01-F-D Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER VERT 8POS 1.27MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Overall Contact Length: 0.309" (7.86mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 7895 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 66.05 грн |
| 250+ | 58.45 грн |
| 500+ | 54.80 грн |
| 1000+ | 45.94 грн |
| 2500+ | 38.40 грн |
| 5000+ | 32.23 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-104-01-F-D Samtec Inc.
Description: CONN HEADER VERT 8POS 1.27MM, Packaging: Bulk, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Through Hole, Number of Positions: 8, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Overall Contact Length: 0.309" (7.86mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-104-01-F-D
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
FTSH-104-01-F-D | Виробник : SAMTEC |
Description: SAMTEC - FTSH-104-01-F-D - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 8 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 8Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbindertyp: Stiftleiste Produktpalette: FTSH productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (27-Jun-2024) |
на замовлення 6 шт: термін постачання 21-31 дні (днів) |
|
 |
FTSH-104-01-F-D | Виробник : Samtec |
Headers & Wire Housings High Reliability Header Strips, 0.050 pitch |
на замовлення 1219 шт: термін постачання 21-30 дні (днів) |
