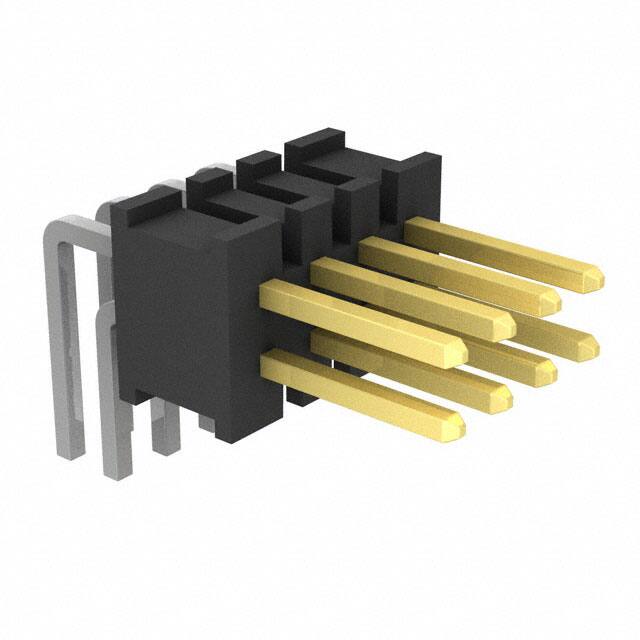

FTSH-104-01-L-D-RA Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER R/A 8POS 1.27MM
Contact Length - Mating: 0.120" (3.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.135" (3.43mm)
Contact Length - Post: 0.090" (2.29mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 8
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 3.4A per Contact
Connector Type: Header, Cuttable
Packaging: Bulk
| Кількість | Ціна |
|---|---|
| 3+ | 132.12 грн |
| 50+ | 110.21 грн |
| 100+ | 94.65 грн |
| 500+ | 76.28 грн |
| 1000+ | 64.62 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-104-01-L-D-RA Samtec Inc.
Description: CONN HEADER R/A 8POS 1.27MM, Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.135" (3.43mm), Contact Length - Post: 0.090" (2.29mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 8, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Cuttable, Packaging: Bulk.
