FTSH-105-01-F-D-007-K Samtec
на замовлення 167 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 248.46 грн |
| 92+ | 198.85 грн |
| 276+ | 146.87 грн |
| 552+ | 133.52 грн |
Відгуки про товар
Написати відгук

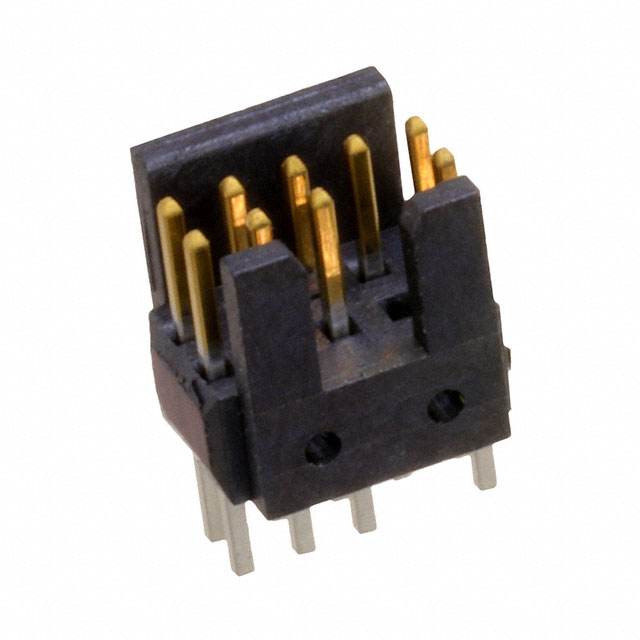

Технічний опис FTSH-105-01-F-D-007-K Samtec
Description: CONN HEADER VERT 10POS 1.27MM, Packaging: Tube, Features: Keying Shroud, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: 9, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.099" (2.51mm), Shrouding: Shrouded, Overall Contact Length: 0.309" (7.86mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-105-01-F-D-007-K за ціною від 193.97 грн до 286.7 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-105-01-F-D-007-K | Виробник : SAMTEC |
 Description: SAMTEC - FTSH-105-01-F-D-007-K - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 10 Kontakt(e), DurchsteckmontagetariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 10Contacts euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Produktpalette: FTSH productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Rows Rastermaß: 1.27mm SVHC: No SVHC (14-Jun-2023) |
на замовлення 28 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
FTSH-105-01-F-D-007-K | Виробник : Samtec Inc. |
Description: CONN HEADER VERT 10POS 1.27MM Packaging: Tube Features: Keying Shroud Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: 9 Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Contact Shape: Square Contact Length - Post: 0.090" (2.29mm) Insulation Height: 0.099" (2.51mm) Shrouding: Shrouded Overall Contact Length: 0.309" (7.86mm) Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 348 шт: термін постачання 21-31 дні (днів) |
|
