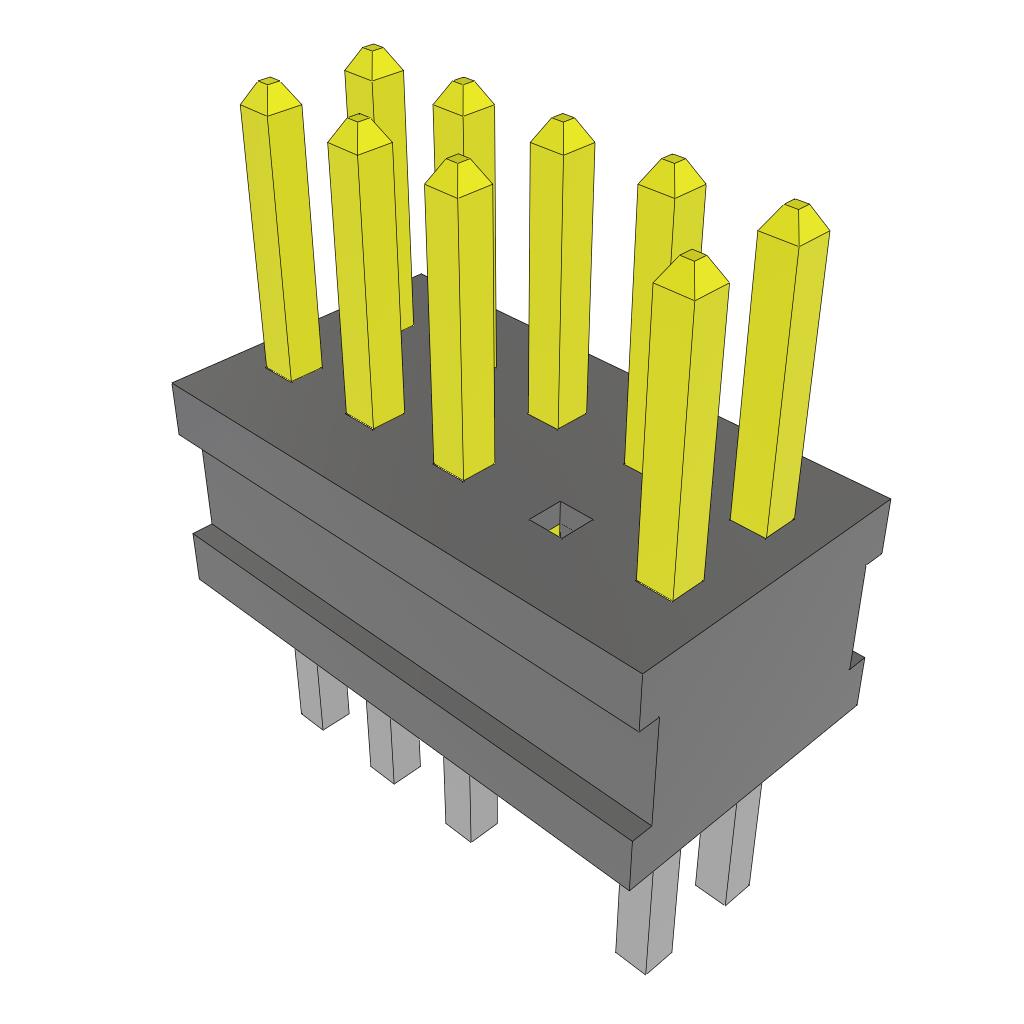

FTSH-105-01-F-D-007 Samtec Inc.
Виробник: Samtec Inc.
Description: HIGH RELIABILITY HEADER STRIPS,
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Overall Contact Length: 0.309" (7.86mm)
Shrouding: Unshrouded
Insulation Height: 0.099" (2.51mm)
Contact Length - Post: 0.090" (2.29mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Connector Type: Header, Cuttable
Packaging: Tube
Contact Length - Mating: 0.120" (3.05mm)
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Through Hole
Current Rating (Amps): 3.4A per Contact
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: 9
| Кількість | Ціна |
|---|---|
| 3+ | 124.21 грн |
| 50+ | 103.48 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-105-01-F-D-007 Samtec Inc.
Description: HIGH RELIABILITY HEADER STRIPS,, Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Overall Contact Length: 0.309" (7.86mm), Shrouding: Unshrouded, Insulation Height: 0.099" (2.51mm), Contact Length - Post: 0.090" (2.29mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Connector Type: Header, Cuttable, Packaging: Tube, Contact Length - Mating: 0.120" (3.05mm), Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 10, Mounting Type: Through Hole, Current Rating (Amps): 3.4A per Contact, Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: 9.
Інші пропозиції FTSH-105-01-F-D-007 за ціною від 65.47 грн до 129.63 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-105-01-F-D-007 | Samtec |
Headers & Wire Housings High Reliability Header Strips, .050" pitch |
на замовлення 418 шт: термін постачання 21-30 дні (днів) |
|
| FTSH-105-01-F-D-007 |
|
Виробник: Samtec
Headers & Wire Housings High Reliability Header Strips, .050" pitch
Headers & Wire Housings High Reliability Header Strips, .050" pitch
на замовлення 418 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 3+ | 129.63 грн |
| 50+ | 110.80 грн |
| 552+ | 71.03 грн |
| 1012+ | 65.47 грн |
