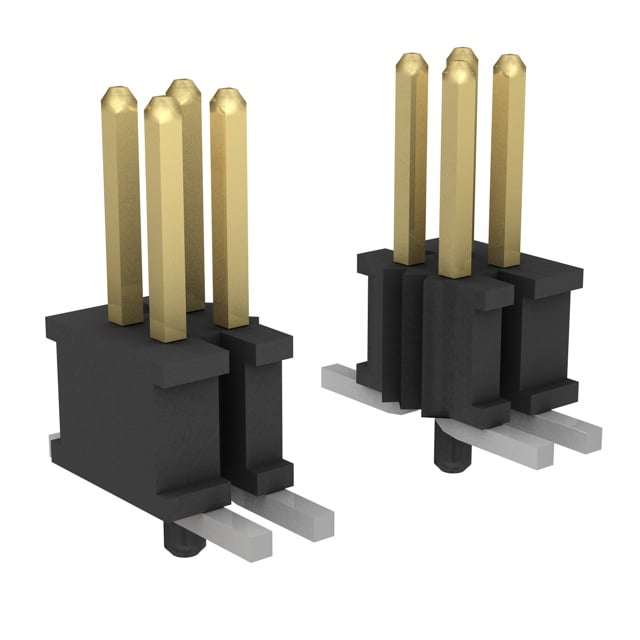

FTSH-105-01-F-DV-A-P-TR Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Відгуки про товар
Написати відгук
Технічний опис FTSH-105-01-F-DV-A-P-TR Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM, Features: Board Guide, Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-105-01-F-DV-A-P-TR за ціною від 67.87 грн до 155.54 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-105-01-F-DV-A-P-TR | Samtec |
Headers & Wire Housings High Reliability Header Strips |
на замовлення 649 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
|
|
FTSH-105-01-F-DV-A-P-TR | Samtec Inc. |
Description: CONN HEADER SMD 10POS 1.27MM Row Spacing - Mating: 0.050" (1.27mm) Insulation Material: Liquid Crystal Polymer (LCP) Shrouding: Unshrouded Insulation Height: 0.099" (2.51mm) Contact Shape: Square Part Status: Active Number of Rows: 2 Number of Positions: 10 Mounting Type: Surface Mount Current Rating (Amps): 3.4A per Contact Connector Type: Header, Cuttable Features: Board Guide, Pick and Place Packaging: Cut Tape (CT) Contact Length - Mating: 0.120" (3.05mm) Contact Finish - Post: Tin Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Mating: Gold Pitch - Mating: 0.050" (1.27mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable |
на замовлення 961 шт: термін постачання 21-31 дні (днів) |
|
| FTSH-105-01-F-DV-A-P-TR |
|
Виробник: Samtec
Headers & Wire Housings High Reliability Header Strips
Headers & Wire Housings High Reliability Header Strips
на замовлення 649 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 136.05 грн |
| 100+ | 110.82 грн |
| 250+ | 95.66 грн |
| 425+ | 79.60 грн |
| 850+ | 67.87 грн |
| FTSH-105-01-F-DV-A-P-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.099" (2.51mm)
Contact Shape: Square
Part Status: Active
Number of Rows: 2
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.4A per Contact
Connector Type: Header, Cuttable
Features: Board Guide, Pick and Place
Packaging: Cut Tape (CT)
Contact Length - Mating: 0.120" (3.05mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Description: CONN HEADER SMD 10POS 1.27MM
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.099" (2.51mm)
Contact Shape: Square
Part Status: Active
Number of Rows: 2
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.4A per Contact
Connector Type: Header, Cuttable
Features: Board Guide, Pick and Place
Packaging: Cut Tape (CT)
Contact Length - Mating: 0.120" (3.05mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
на замовлення 961 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 155.54 грн |
| 100+ | 117.61 грн |
