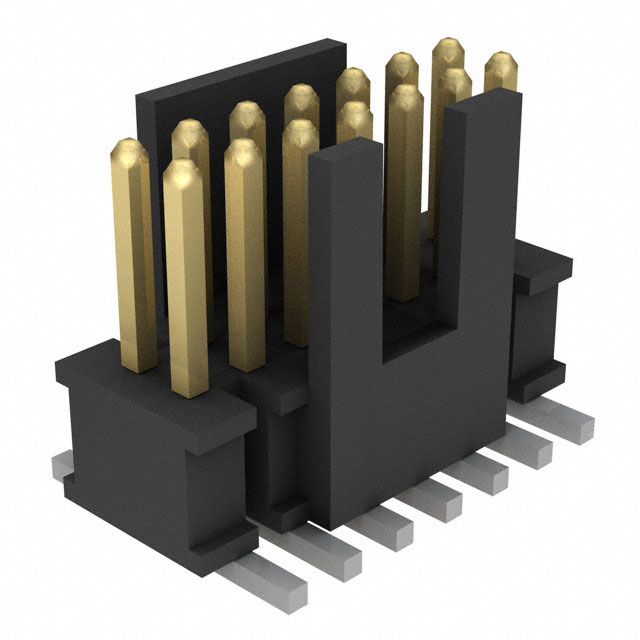

FTSH-107-01-L-DV-K-P-TR SAMTEC
Виробник: SAMTEC
Category: Board-to-board connectors
Description: Connector: pin strips; socket; male; PIN: 14; vertical; SMT; 1.27mm
Spatial orientation: vertical
Connector variant: pick and place
Contacts pitch: 1.27mm
Number of pins: 14
Electrical mounting: SMT
Connector pinout layout: 2x7
Type of connector: pin strips
Kind of package: reel
Kind of connector: male
Connector: socket
Contact plating: gold-plated
Відгуки про товар
Написати відгук
Технічний опис FTSH-107-01-L-DV-K-P-TR SAMTEC
Description: CONN HEADER SMD 14POS 1.27MM, Features: Keying Shroud, Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-107-01-L-DV-K-P-TR за ціною від 99.51 грн до 366.89 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FTSH-107-01-L-DV-K-P-TR | Samtec Inc. |
Description: CONN HEADER SMD 14POS 1.27MM Features: Keying Shroud, Pick and Place Packaging: Tape & Reel (TR) Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Surface Mount Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.099" (2.51mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 22100 шт: термін постачання 21-31 дні (днів) |
|
||||||||
|
|
FTSH-107-01-L-DV-K-P-TR | Samtec Inc. |
Description: CONN HEADER SMD 14POS 1.27MM Features: Keying Shroud, Pick and Place Packaging: Cut Tape (CT) Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Surface Mount Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.099" (2.51mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 22284 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
FTSH-107-01-L-DV-K-P-TR | Samtec |
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 7600 шт: термін постачання 21-31 дні (днів) |
|
||||||||
|
|
FTSH-107-01-L-DV-K-P-TR | Samtec |
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 39 шт: термін постачання 21-31 дні (днів) |
|
||||||||
|
|
FTSH-107-01-L-DV-K-P-TR | Samtec |
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 610 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
FTSH-107-01-L-DV-K-P-TR | SAMTEC |
Description: SAMTEC - FTSH-107-01-L-DV-K-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e) tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 14Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: Stiftleiste Produktpalette: FTSH productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm |
на замовлення 772 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. | ||||||||
|
|
FTSH-107-01-L-DV-K-P-TR | Samtec |
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R |
на замовлення 39 шт: термін постачання 21-31 дні (днів) |
Мінімальне замовлення: 3 шт В кошику од. на суму грн. |
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 14POS 1.27MM
Features: Keying Shroud, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 14POS 1.27MM
Features: Keying Shroud, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 22100 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 400+ | 178.65 грн |
| 800+ | 147.17 грн |
| 1200+ | 124.87 грн |
| 2800+ | 99.51 грн |
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 14POS 1.27MM
Features: Keying Shroud, Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 14POS 1.27MM
Features: Keying Shroud, Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 22284 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 190.28 грн |
| 10+ | 155.56 грн |
| 100+ | 132.18 грн |
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 7600 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 400+ | 254.20 грн |
| 500+ | 217.35 грн |
| 1000+ | 184.28 грн |
| 2500+ | 151.27 грн |
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 39 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 306.18 грн |
| 25+ | 293.90 грн |
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 610 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 39+ | 366.89 грн |
| 50+ | 309.07 грн |
| 250+ | 291.29 грн |
| 500+ | 240.14 грн |
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: SAMTEC
Description: SAMTEC - FTSH-107-01-L-DV-K-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 14Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: Stiftleiste
Produktpalette: FTSH
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
Description: SAMTEC - FTSH-107-01-L-DV-K-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 14Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: Stiftleiste
Produktpalette: FTSH
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
на замовлення 772 шт:
термін постачання 21-31 дні (днів)
| FTSH-107-01-L-DV-K-P-TR |
|
Виробник: Samtec
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
Conn Unshrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER CLAW™ T/R
на замовлення 39 шт:
термін постачання 21-31 дні (днів)
